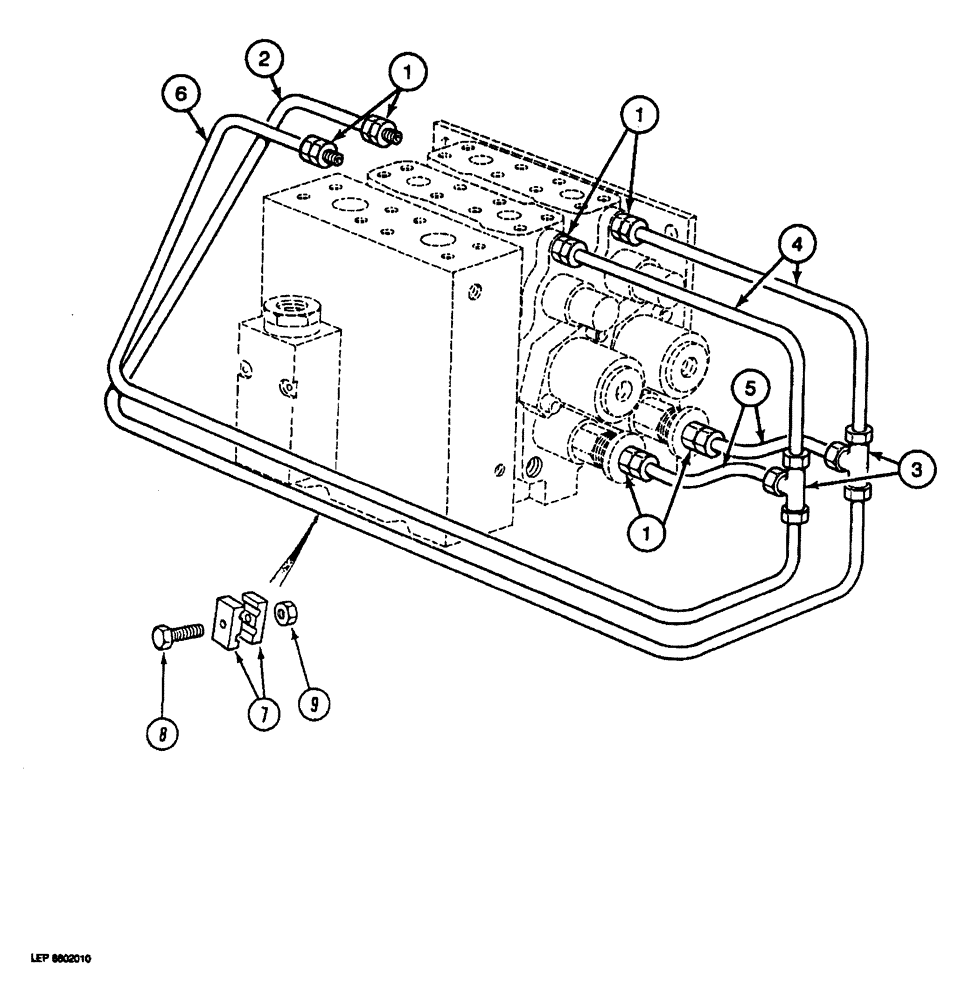

Запчасти Case 688 (7-08) - TRACK DRIVE CONTROL CIRCUIT, P.I.N. FROM 74228 AND AFTER (07) - BRAKES

1

P3237530

UNION

ADAPTER - straight

6шт.

P7046042

SEAL

- adapter, not shown

1шт.

2

P6649157

PIPE

TUBE - pressure sensing, tee to upper port of drive control valve

1шт.

3

P2643351

BLOCK ASSY.

TEE - pressure sensing tubes

2шт.

4

P7147114

PIPE

TUBE - pressure sensing, upper drive control valve, Serial Range: ports-tee

2шт.

5

P8147673

PIPE

TUBE - tee to lower valve port

2шт.

6

P6649158

PIPE

TUBE - pressure sensing, tee to upper port of drive control valve

1шт.

7

P4420364

SHIN

CLAMP - two tubes

2шт.

8

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

1шт.

9

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.
