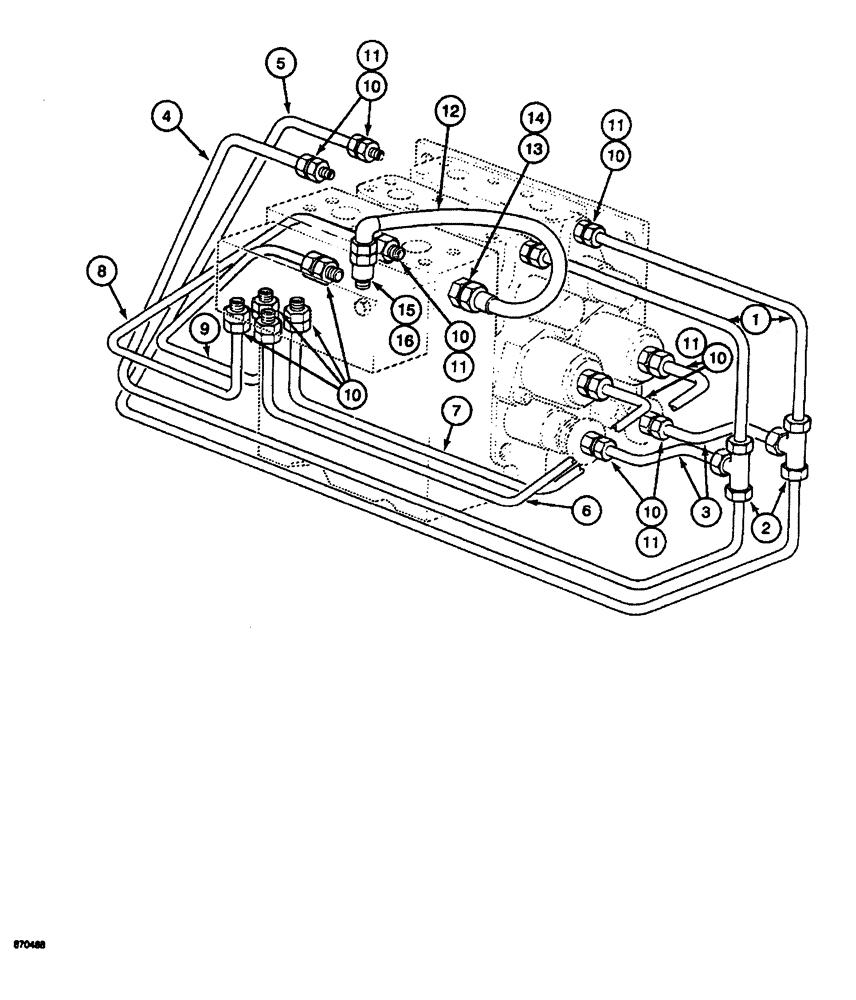

Запчасти Case 688 (7-06) - TRACK DRIVE CONTROL CIRCUIT, P.I.N. FROM 74123 TO 74227 (07) - BRAKES

1

P7147114

PIPE

TUBE - pressure sensing, upper drive control valve, Serial Range: ports-tee

2шт.

2

P2643351

BLOCK ASSY.

TEE - pressure sensing tubes

2шт.

3

P8147673

PIPE

TUBE - tee to lower valve port

2шт.

4

P6649158

PIPE

TUBE - pressure sensing, tee to upper port of drive control valve

1шт.

5

P6649157

PIPE

TUBE - pressure sensing, tee to upper port of drive control valve

1шт.

6

P6249010

PIPE

TUBE - pilot control, brake release valve to right-hand spool of drive control valve

1шт.

7

P6249011

PIPE

TUBE - pilot control, brake release valve to right-hand spool of drive control valve

1шт.

8

P6249012

PIPE

TUBE - pilot control, brake release valve to left-hand spool of drive control valve

1шт.

9

P6249013

PIPE

TUBE - pilot control, brake release valve to left-hand spool of drive control valve

1шт.

10

P3237530

UNION

ADAPTER - straight, Includes: Ref. 11

14шт.

11

P7046042

SEAL

- adapter, not shown

1шт.

12

P5431936

HOSE

- 24-7/8" long, pressure from center block to brake release valve

1шт.

13

P4037579

UNION

ADAPTER - straight, Includes: Ref. 14

1шт.

14

P7046042

SEAL

- adapter, not shown

1шт.

15

P4037580

UNION

ADAPTER - straight, long, Includes: Ref. 14

1шт.

14

P7046042

SEAL

- adapter, not shown

1шт.
