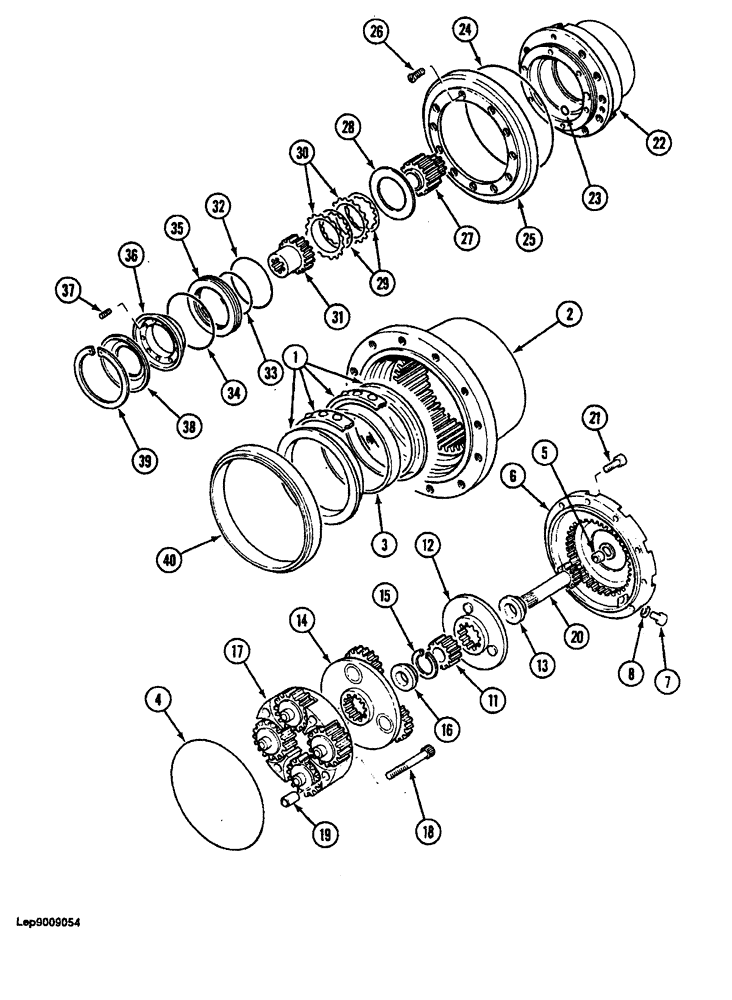

Запчасти Case 688 (6-14) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, continued from Figure 6-12, Includes: Ref. 22 - 40

2шт.

22

P8346242

HUB

HOUSING - brake

1шт.

23

P230419

O-RING

- brake housing, small

2шт.

24

P1630413

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

- brake housing, large

1шт.

25

P1846356

FLANGE

COVER - seal

1шт.

26

P3333004

SCREW

- special, seal cover

3шт.

27

P4339358

GEAR

SUN GEAR - planetary

1шт.

28

P2828593

SPACER

- brake disc

1шт.

29

P3145090

DISC

- brake, metal

5шт.

30

P1245225

DISC

- brake, friction

6шт.

31

P4339354

PINION

COUPLING - drive motor

1шт.

32

P1130460

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

- piston, large

1шт.

Part of seal kit P/N P5449682

1шт.

33

P1830402

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- piston, small

1шт.

Part of seal kit P/N P5449682

1шт.

34

P1930426

O-RING

- piston

1шт.

Part of seal kit P/N P5449682

1шт.

35

P2728957

SPACER

RETAINER - O-ring

1шт.

36

P1929077

PISTON

- brake (Replaces P1929059)

1шт.

37

P38287

SPRING

- brake piston

9шт.

38

P1929060

STOP

CAP - brake

1шт.

39

P36262

RING, SNAP

SNAP RING - brake cap

1шт.

40

P8046032

RING

SEAL ASSEMBLY - brake housing

1шт.

P5449682

KIT

- seal, Includes: Ref. 32, 33, 34

1шт.
