(6-10) - FINAL DRIVE TRANSMISSION

Запчасти Case 688 (6-10) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

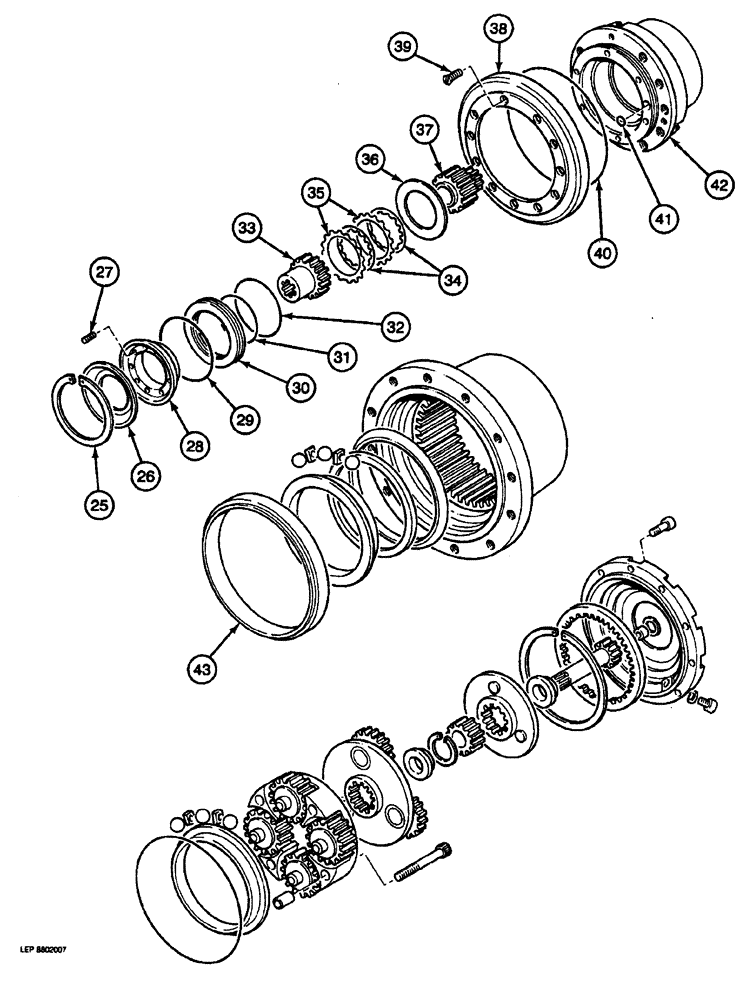

Схема запчастей Case 688 - (6-10) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN
28
31
42
37
36
34
32
43
26
29
38
35
41
33
39
30
40
25
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K2648551

REDUCER

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, continued from figure 6-8, Includes: Ref. 25 -43

2шт.

25

P36262

RING, SNAP

SNAP RING - brake cap

1шт.

26

P1929060

STOP

CAP - brake

1шт.

27

P38287

SPRING

- brake piston

9шт.

28

P1929059

PISTON

- brake

1шт.

29

P1930426

O-RING

- piston

1шт.

Part of seal kit P/N P5449682

1шт.

30

P2728957

SPACER

RETAINER - O-ring

1шт.

31

P1830402

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- piston, small

1шт.

Part of seal kit P/N P5449682

1шт.

32

P1130460

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

- piston, large

1шт.

Part of seal kit P/N P5449682

1шт.

33

P4339354

PINION

COUPLING - drive motor

1шт.

34

P3145090

DISC

- brake, metal

5шт.

35

P1245225

DISC

- brake, friction

6шт.

36

P2828593

SPACER

- brake disc

1шт.

37

P4339358

GEAR

SUN GEAR - planetary

1шт.

38

P1846356

FLANGE

COVER - seal

1шт.

39

P3333004

SCREW

- special, seal cover

3шт.

40

P1630413

O-RING,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

- brake housing, large

1шт.

41

P230419

O-RING

- brake housing, small

2шт.

42

P8346242

HUB

HOUSING - brake

1шт.

43

P8046032

RING

SEAL ASSEMBLY - brake housing

1шт.

P5449682

KIT

- seal, Includes: Ref. 29, 31 and 32

1шт.
