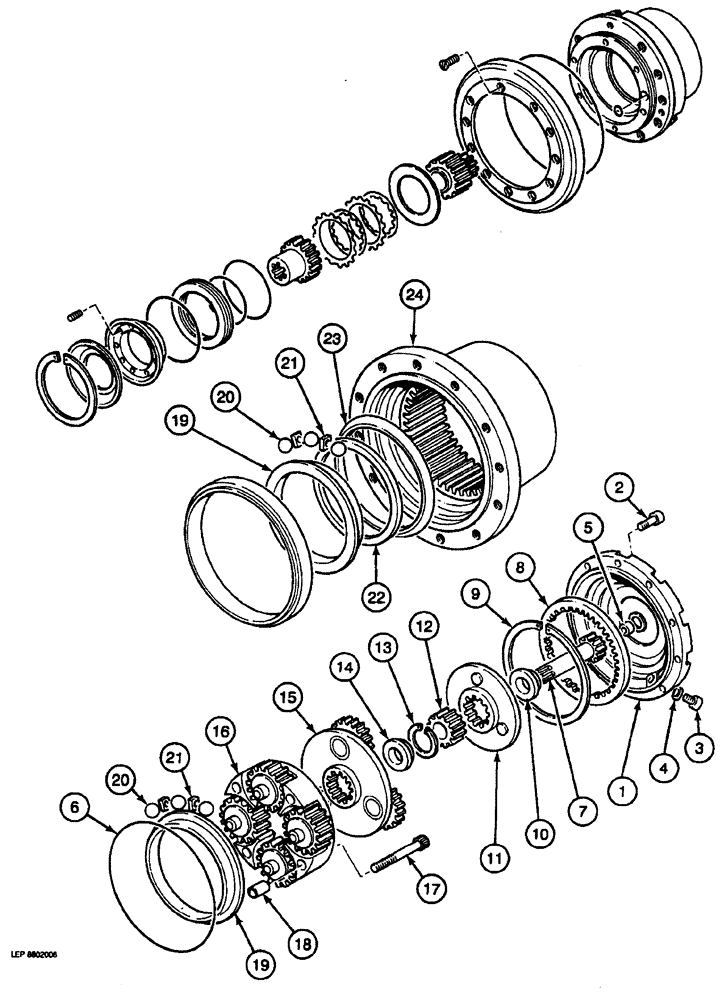

Запчасти Case 688 (6-08) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

P2348589

REDUCER

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator , Includes: Ref. 1 - 24

2шт.

CHECK PLATE ON END COVER FOR LETTER (A - B - C) FOLLOWING TRANSMISSION PART NUMBER

1шт.

1

NLS

NO LONGER SERVICED

- planetary, used with "B" letter identification (Order P5140368)

1шт.

WHEN ORDERING P4339955 OR P5140329, YOU WILL GET P5140368 COVER ASSEMBLY

1шт.

2

P1532917

BOLT

- hex head socket, 10 mm x 25 mm, gage 12.9, use Loctite 242 when assembly

10шт.

3

P2537486

PLUG

- planetary cover

2шт.

4

P545208

WASHER, SEALING

SEAL - plug

1шт.

5

P5428749

HOLE PLUG BUTTON

BUSHING - planetary cover

1шт.

6

P130423

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

-, Serial Range: cover-hub

1шт.

7

P4339357

GEAR

PINION SHAFT - transmission

1шт.

8

P4339355

SLEWING RING

RING GEAR - planetary (Order P5140368)

1шт.

WHEN ORDERING P4339955 OR P5140329, YOU WILL GET P5140368 - COVER ASSEMBLY

1шт.

9

P936350

RING

SNAP RING - ring gear

1шт.

P4339383

PINION CARRIER

THIRD STAGE CARRIER - planetary, Includes: Ref. 10 - 11

1шт.

10

P6027869

STOP

SPACER - third stage carrier

1шт.

11

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

12

P4339356

GEAR

SUN GEAR - planetary

1шт.

P4339384

PINION CARRIER

SECOND STAGE CARRIER - planetary, Includes: Ref. 13 - 15

1шт.

13

P936349

RING

SNAP RING - sun gear

1шт.

14

P3628809

RING

SPACER - seond stage carrier

1шт.

15

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

P4339385

PINION CARRIER

FIRST STAGE CARRIER - planetary, Includes: Ref. 16 - 17

1шт.

16

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

17

P3533017

SCREW

BOLT - hex socket head, 16 mm x 100 mm, grade 10.9, use Loctite 242 when assembly

4шт.

18

P2229376

BUSHING

SPACER - bolt

4шт.

19

P3628808

RING

RACE - hub bearing

2шт.

20

P31041

BALL

- steel, hub bearing

48шт.

21

P1245269

SPACER

- ball, hub bearing

48шт.

22

P2828592

SPACER

- bearing race, inner

1шт.

23

P1245268

SPACER

- bearing race, outer

1шт.

24

P5140327

HOUSING

HUB - transmission

1шт.
