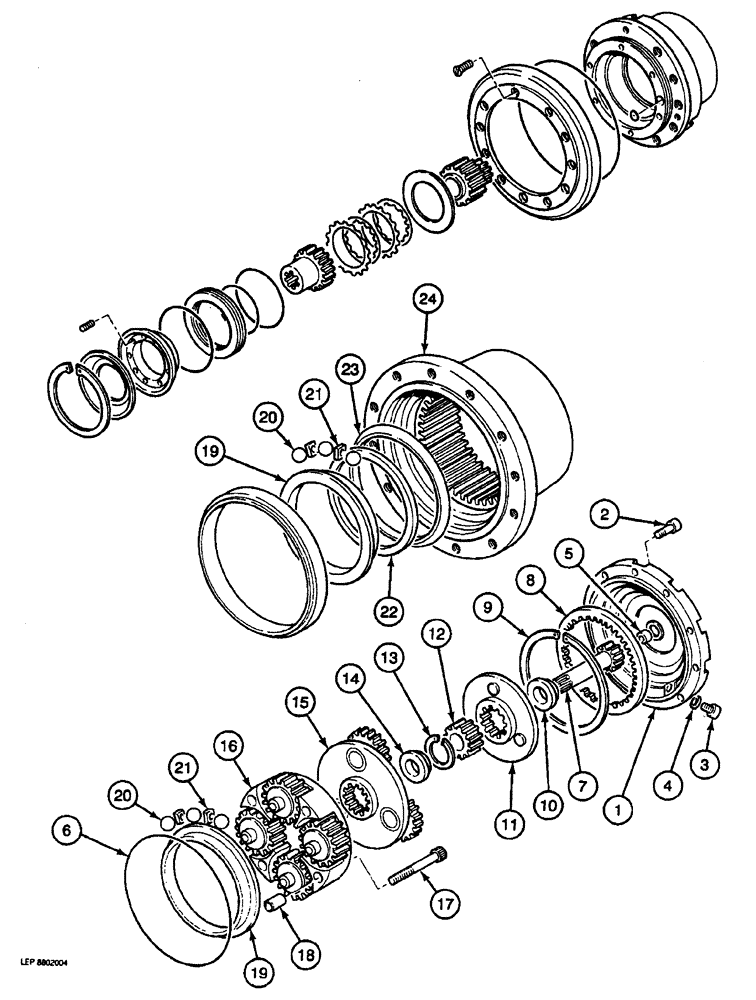

Запчасти Case 688 (6-04) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

P2348589

REDUCER

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator , Includes: Ref. 1 - 24

2шт.

CHECK PLATE ON END COVER FOR LETTER ( A - B - C) FOLLOWING TRANSMISSION PART NUMBER

1шт.

1

P5140328

COVER

- planetary, use with "A" letter identification

1шт.

2

P1532917

BOLT

- hex head socket, 10 mm x 25 mm, grade 12.9, use Loctite 242 when assembly

10шт.

3

P2537486

PLUG

- planetary cover

2шт.

4

P545217

GASKET

SEAL - plug

1шт.

5

P5428749

HOLE PLUG BUTTON

BUSHING - planetray cover

1шт.

6

P130423

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

-, Serial Range: cover-hub

1шт.

7

P4339357

GEAR

PINION SHAFT - transmission

1шт.

8

P4339355

SLEWING RING

RING GEAR - planetary

1шт.

9

P936350

RING

SNAP RING - ring gear

1шт.

10

P6027869

STOP

SPACER - third stage carrier

1шт.

11

NSS

NOT SOLD SEPARAT

THIRD STAGE CARRIER - planetary

1шт.

12

P4339356

GEAR

SUN GEAR - planetary

1шт.

13

P936349

RING

SNAP RING - sun gear

1шт.

14

P3628809

RING

SPACER - second stage carrier

1шт.

15

NSS

NOT SOLD SEPARAT

SECOND STAGE CARRIER - planetary

1шт.

16

NSS

NOT SOLD SEPARAT

FIRST STAGE CARRIER - planetary

1шт.

17

P1332970

SCREW

BOLT - hex socket head, 16 mm x 100 mm, grade 10.9, use Loctite 242 when assembly

4шт.

18

P2229376

BUSHING

SPACER - bolt

4шт.

19

P3628808

RING

RACE - hub bearing

2шт.

20

P31041

BALL

- steel, hub bearing

48шт.

21

P1245269

SPACER

- ball, hub bearing

48шт.

22

P2828592

SPACER

- bearing race, inner

1шт.

23

P1245268

SPACER

- bearing race, outer

1шт.

24

P5140327

HOUSING

HUB - transmission

1шт.
