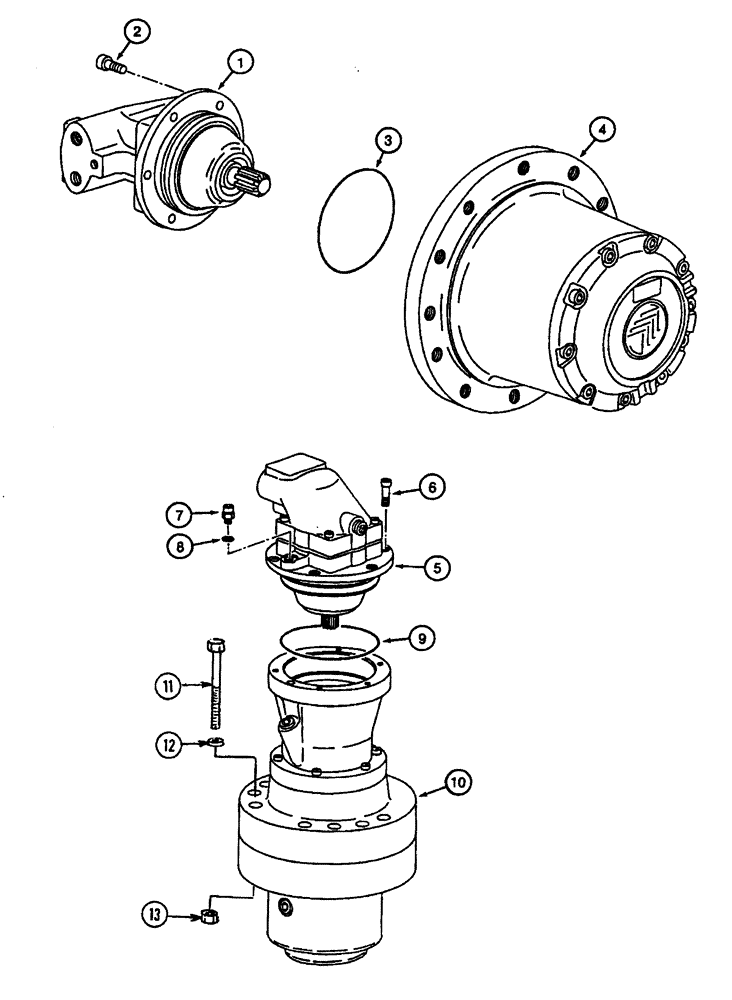

Запчасти Case 688 (6-02) - HYDRAULIC MOTOR TO FINAL DRIVE AND SWING TRANSMISSIONS (06) - POWER TRAIN

1

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY - track drive, see Figure 8-92

2шт.

2

P532988

SCREW

BOLT - hex socket head, 10 mm x 25 mm, grade 10.9

12шт.

3

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- drive, Serial Range: motor-transmission

2шт.

4

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, see Figures, Serial Range: 6-4-6-14

2шт.

5

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY- SWING, see Figure 8-92

1шт.

6

P532988

SCREW

BOLT - hex socket head, 10 mm x 25 mm, grade 10.9

6шт.

7

P2537494

PLUG

BREATER - swing motor, Includes: Ref. 8

1шт.

8

P7046042

SEAL

- breather

1шт.

9

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- swing, Serial Range: motor-transmission

1шт.

10

REF

INSTRUCTION

SWING TRANSMISSION ASSEMBLY - excavator, see Figures, Serial Range: 6-14-6-18

1шт.

11

P1633867

SCREW

BOLT - hex, 20 mm x 180 mm, grade 10.9

8шт.

12

P5428789

WASHER

SPACER - bolt, 14 mm thick (Replaces P4328747)

8шт.

13

P134106

NUT

- hex, 20 mm

8шт.

P2648569

REDUCER

1шт.

P4743722

MOTOR, HYDRAULIC

1шт.

P4743307

SHIN

FLANGE

1шт.

P2930470

SEAL

1шт.

P3749696

SEAL PACKAGE

KIT

1шт.
