(4-36) - CAB HEATER, SCHNEEBELI-CHABAUD IF USED, P.I.N. FROM 74123 TO

Запчасти Case 688 (4-36) - CAB HEATER, SCHNEEBELI-CHABAUD IF USED, P.I.N. FROM 74123 TO (04) - ELECTRICAL SYSTEMS

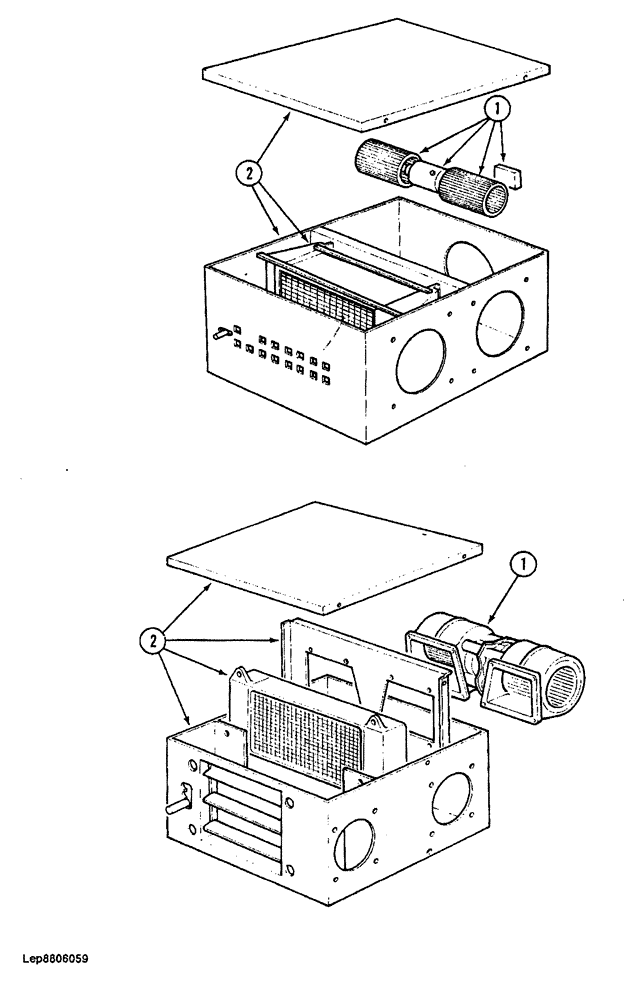

Схема запчастей Case 688 - (4-36) - CAB HEATER, SCHNEEBELI-CHABAUD IF USED, P.I.N. FROM 74123 TO (04) - ELECTRICAL SYSTEMS
2
1
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1241896

HEATER

- cab, (Order P1941806 see Figure 4-38), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

2

P3743258

HEATER

CORE - heater

1шт.

3

P1941818

VENTILATOR

BLOWER ASSEMBLY - air cab

1шт.

4

P837861

COCK

VALVE - heater control

1шт.

5

P6731990

LARGE HOSE

HOSE - heater core

2шт.

6

P3036970

CLAMP

- heater core hose

4шт.

7

P9346022

SEAL

- core

1шт.

8

P6731990

LARGE HOSE

HOSE - Heater core

1шт.
