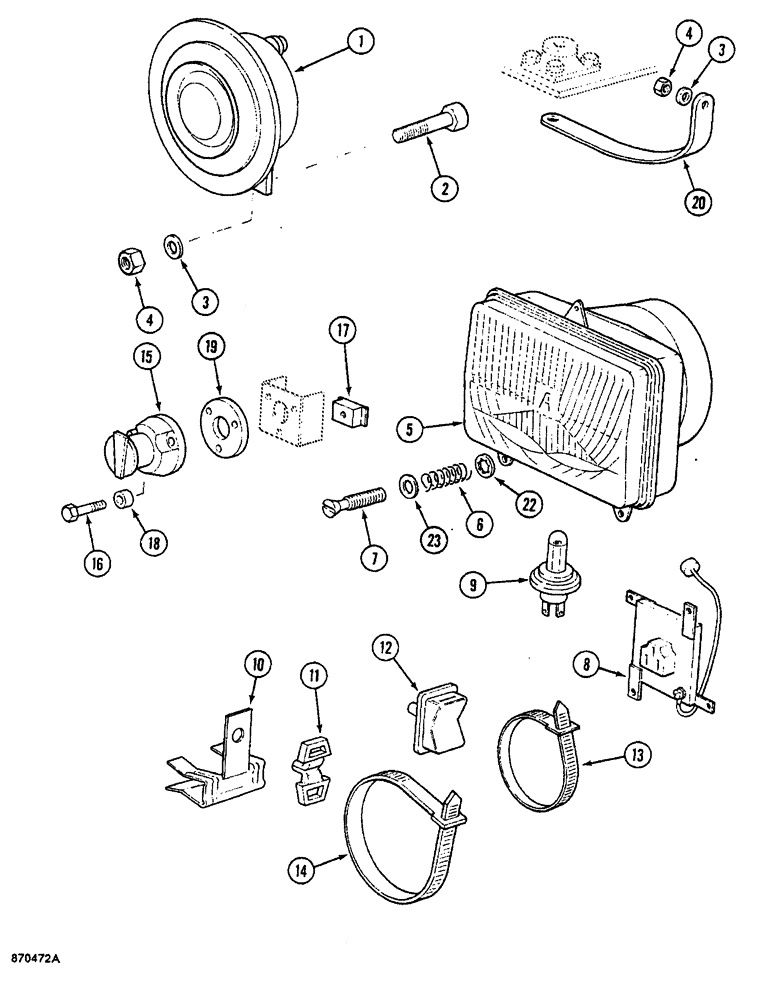

Запчасти Case 688 (4-30) - TURNTABLE ELECTRICAL COMPONENTS (04) - ELECTRICAL SYSTEMS

1

P4143205

BUZZER

HORN - electrical, turntable, (Replaces P841746)

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

1шт.

3

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (Replaces P34113)

2шт.

5

P841726

HEADLIGHT

LAMP ASSEMBLY - work, at turntable (Replaces P841763), Includes: Ref. 6 - 8

2шт.

6

P1038258

SPRING

- lamp

3шт.

7

P3533051

SCREW

- special, lamp

3шт.

8

P841775

CONNECTION,ELECTRIC

CONNECTOR - lamp

1шт.

9

P140555

LAMP

BULB - lamp, white, if used

2шт.

9

P140556

LAMP

BULB - lamp, yellow, if used

2шт.

10

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

10шт.

11

PP2036939

CLASP

RETAINER - tie strap

10шт.

12

P3036926

BASE

RETAINER - harness strap

6шт.

13

P336923

CLAMP

TIE STRAP - harness, 4-5/8" long

19шт.

14

P51946

CLAMP

TIE STRAP - harness, 10-1/8" long

2шт.

15

P40740

PEDESTAL

SOCKET - harness, boom lamp

1шт.

16

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

3шт.

17

P834513

NUT

RETAINER - bolt, sleeve type

3шт.

18

P3528799

WASHER

SPACER - bolt, 4 mm thick

3шт.

19

P7546095

SEAL

GASKET - lamp socket

1шт.

20

P41824

NEG BATTERY CABLE

STRAP - ground, rear cab mount

1шт.

21

P34113

NUT

- hex 8 mm

1шт.

22

P26708

SHAFT LOCK

RETAINER - lamp screw

2шт.

23

P34804

WASHER

- flat, 5 mm

6шт.

P841729

LIGHT

ASSY. tail, Figure 4-28

1шт.

P5628299

SUPPORT

BRACKET, Figure 4-30

1шт.

P5240324

LENS

1/2 amber, 1/2 red

1шт.

P40586

LAMP

BULB

1шт.
