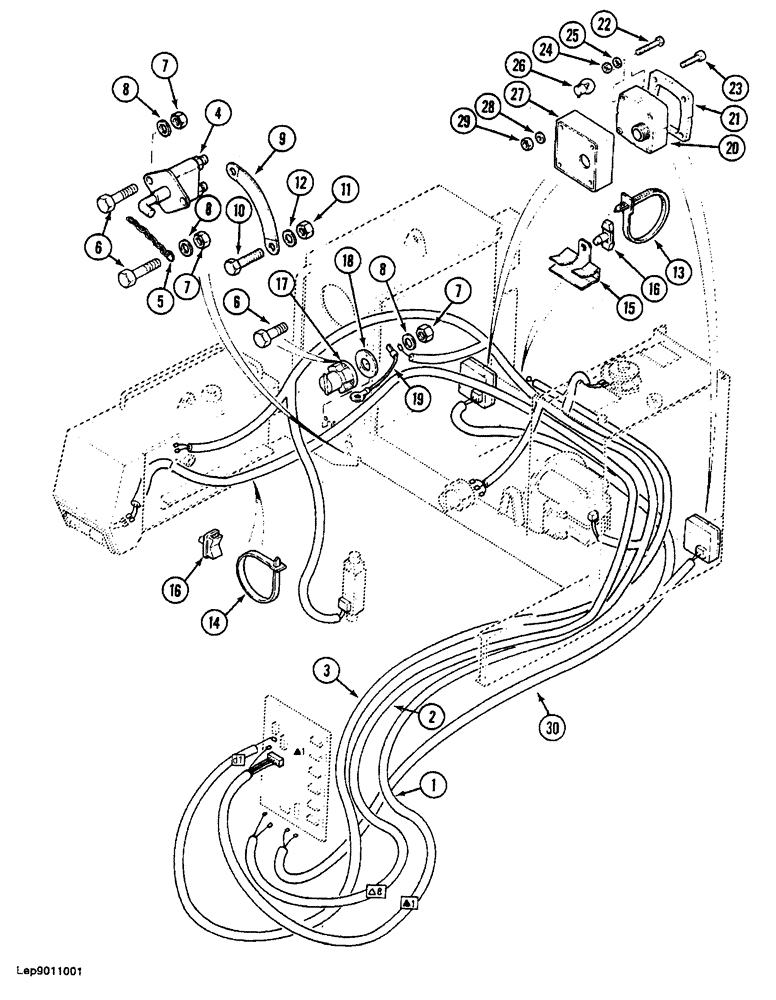

Запчасти Case 688 (4-28) - TURNTABLE ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

P9247294

HARNESS

ASSEMBLY - electrical at circuit board (Replaces P9247283)

1шт.

2

P9547299

CABLE

HARNESS - circuit board to front work lamp

1шт.

3

P9247283

CABLE

HARNESS - turntable, main, to senders, electrical sockets and solenoid valve (Replaces P9247294)

1шт.

4

P641221

IGNITION SWITCH

SWITCH - electrical, master disconnect

1шт.

5

Q2631352

CHAIN (CE)

CHAIN - battery disconnect

1шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

5шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

6шт.

8

P3528799

WASHER

SPACER - mounting screw, 4 mm thick

6шт.

9

P41824

NEG BATTERY CABLE

STRAP - ground, battery disconnect switch

1шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

1шт.

11

P34113

NUT

- hex, 8 mm

1шт.

12

P3528794

WASHER

SPACER - bolt, 6 mm thick

1шт.

13

P51946

CLAMP

TIE STRAP - harness, 10-1/8" long

3шт.

14

P336923

CLAMP

TIE STRAP - harness, 4-5/8" long

40шт.

15

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

21шт.

16

P2036939

CLASP

RETAINER - tie strap

21шт.

17

P1340721

PEDESTAL

SOCKET - electrical (Replace P40754)

1шт.

18

P7546095

SEAL

-, Serial Range: socket-frame

1шт.

19

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.

P841729

LIGHT

LAMP ASSEMBLY - rear at turntable, Includes: Ref. 20 - 25

2шт.

20

NSS

NOT SOLD SEPARAT

LAMP - rear at turntable

1шт.

21

P841771

LENS

- light

1шт.

22

P3533077

SCREW

SPACER - screw, special

4шт.

23

P3533078

SCREW

- special, lens mounting 4 mm x 25 mm

4шт.

24

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

25

P35001

WASHER

SPACER - flat, 6 mm

4шт.

26

P40586

LAMP

BULB - rear lamp

4шт.

27

P5628299

SUPPORT

BRACKET - lamp mounting

2шт.

28

P4328728

WASHER

SPACER - bolt, 12 mm thick

8шт.

29

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

8шт.

30

P352248

HARNESS

- circuit board to rear light

1шт.
