Запчасти Case 688 (4-26) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

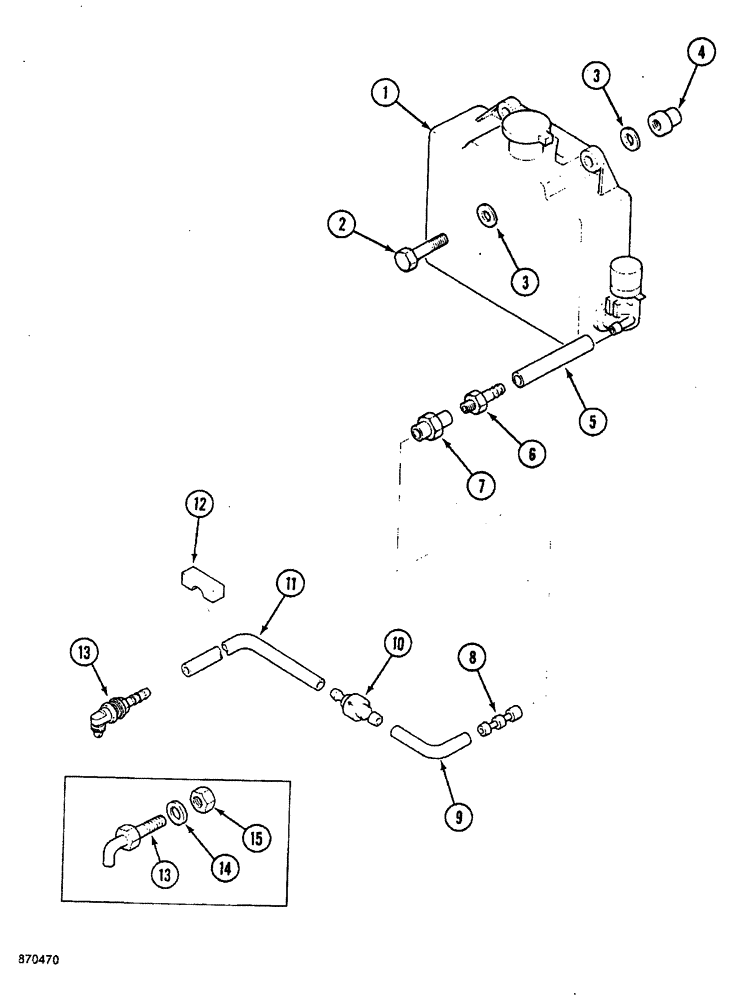

Схема запчастей Case 688 - (4-26) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS
3
15
2
10
8
14
4
13
1
5
7
3
9
12
13
6
11

Артикул

Название

Примечание

Количество

1

P1241880

RESERVOIR ASSY.

WINDSHIELD WASHER RESERVOIR AND MOTOR ASSEMBLY - excavator

1шт.

2

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

3

P35002

WASHER

- flat, 6 mm

4шт.

4

P834513

NUT

RETAINER - bolt, sleeve type, 6 mm

2шт.

5

REF

INSTRUCTION

HOSE - at reservoir, 6" long, cut from P1103643

1шт.

6

P3543210

UNION

ADAPTER - hose, barb type

1шт.

7

P3543209

FITTING

ADAPTER - straight, to barb type adapter

1шт.

8

P3543208

BUSHING

ADAPTER - windshield washer hose

1шт.

9

REF

INSTRUCTION

HOSE - windshield washer, at filter, 19-3/4" long, cut from P1103643

1шт.

10

P3543207

VANEUM GAUGE

FILTER -, Serial Range: hose-nozzle

1шт.

11

REF

INSTRUCTION

HOSE - windshield washer, to nozzle, 138" long, cut from P1103643

1шт.

12

P1241413

CLIP,ELECTRICAL

CLIP - washer, Serial Range: hose-cab

2шт.

13

P943210

JET

NOZZLE - windshield washer, if used, Serial Range: XXXXX-XXXXX

1шт.

13

P3743271

JET

NOZZLE - windshield washer, if used, Start Serial: XXXXX

1шт.

14

P4528713

WASHER

SPACER - washer nozzle, 3/4" thick XXXXX to X, Serial Range: XXXXX-XXXXXX

1шт.

15

100016

NUT,M10 x 1.5, Cl 8

Washer Nozzle M10, Cl 8, Serial Range: XXXXX-XXXXX

1шт.

Выбрано товаров: 16
