Запчасти Case 688 (4-20) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

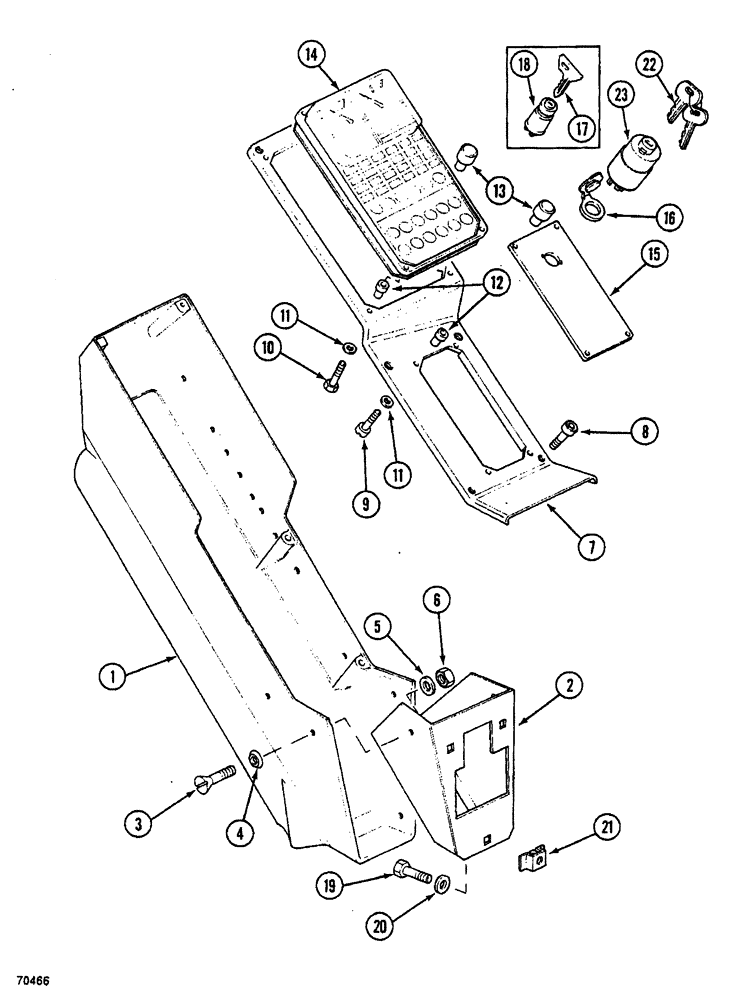

Схема запчастей Case 688 - (4-20) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS
22
14
21
23
1
20
11
17
4
8
12
7
16
18
3
19
15
13
11
2
10
9
5
6

Артикул

Название

Примечание

Количество

1

P6643862

PANEL, INSTRUMENTS

CONSOLE - instrument and console

1шт.

2

P3126343

SUPPORT

BRACKET - console mounting (Replaces P4728221)

1шт.

3

P32415

SCREW

- slotted, 10 mm x 35 mm

5шт.

4

P34802

WASHER

- finish, 10 mm

5шт.

5

P3528795

WASHER

SPACER - console screw, 7 mm thick

5шт.

6

100016

NUT,M10 x 1.5, Cl 8

5шт.

7

P3840376

COVER

- console, top

1шт.

8

P32910

SCREW

- hex socket, 6 mm x 16 mm

6шт.

9

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted, 4 mm x 16 mm

4шт.

10

P32531

SCREW

- slotted, 4 mm x 20 mm

4шт.

11

P34603

WASHER

- flat, 4 mm

8шт.

12

P2036924

BUSHING

RETAINER - screw to console cover

8шт.

13

P641612

BUTTON

NUT - retainer, access cover and control panel

8шт.

14

REF

INSTRUCTION

PANEL ASSEMBLY - controls, parts list Figure 4-22

1шт.

15

P4823437

LARGE PLATE

COVER - console access

1шт.

16

P2340476

LIGHT FAIRING

COVER - key switch

1шт.

P2741611

SWITCH

KEY SWITCH ASSEMBLY - electrical system (Order P2741647), Includes: Ref. 17 and 18

1шт.

17

P1352033

SET OF 2 KEYS

KEY - ignition switch

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - electrical system

1шт.

19

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

3шт.

20

P3528795

WASHER

SPACER - bracket bolt, 7 mm thick

3шт.

21

P1334560

NUT

RETAINER - bolt sleeve type, 10 mm

3шт.

P2741647

SWITCH

KEY SWITCH ASSEMBLY - electrical system

1шт.

22

P1352067

SET OF 2 KEYS

KEY - ignition switch

1шт.

23

NSS

NOT SOLD SEPARAT

SWITCH - electrical system

1шт.
