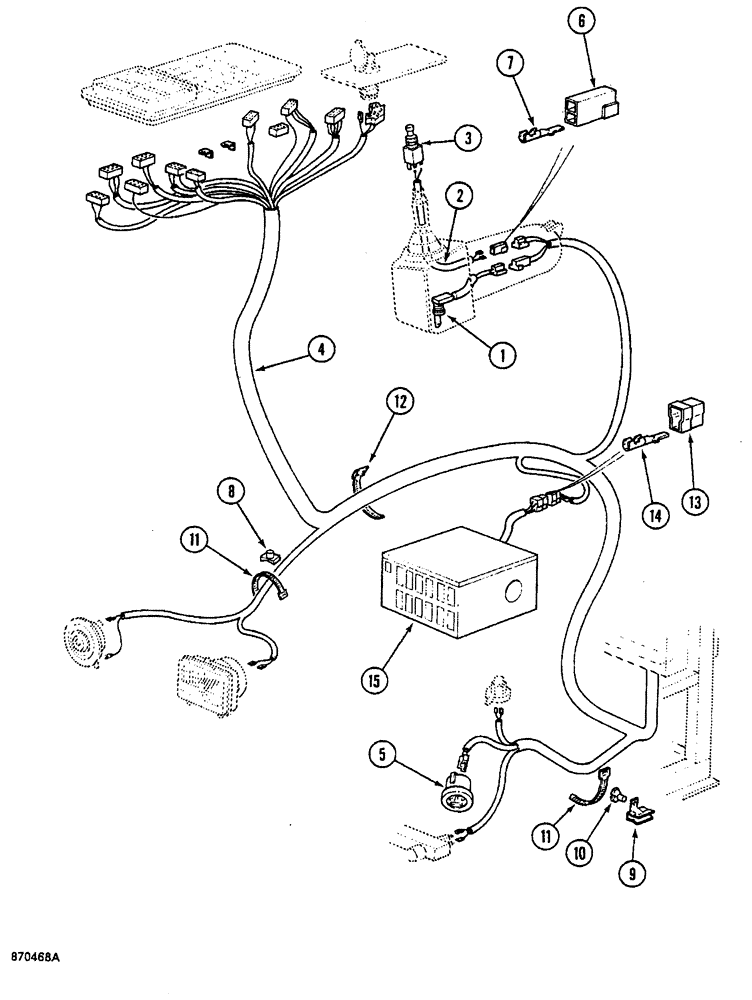

Запчасти Case 688 (4-18) - CAB ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

P2741650

DETECTOR

SAFETY SWITCH AND HARNESS - at hand control console, (Replaces P2141699)

1шт.

P2141681

REVERSER

BUTTON AND SWITCH ASSEMBLY - horn control, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HARNESS - horn control

1шт.

3

P1541665

SWITCH

- horn control

1шт.

4

P1652222

HARNESS

- main, instrument panel, see Figure 4-14 and 16 for connections to electrical panel

1шт.

5

P2141660

METER

HOURMETER - electric

1шт.

6

P740848

CASE

CONNECTOR - female, 2-way

1шт.

7

P40938

CONNECTION

CLIP - wire retainer

2шт.

8

P3036926

BASE

RETAINER - harness strap

10шт.

9

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

11шт.

10

PP2036939

CLASP

RETAINER - tie strap

11шт.

11

P336923

CLAMP

TIE STRAP - harness, 4-5/8" long

10шт.

12

P51946

CLAMP

TIE STRAP - harness, 10-1/8" long

16шт.

13

P840766

ELEC CONNECTOR

CONNECTOR - female, 3-way

1шт.

14

P40938

CONNECTION

CLIP - wire retainer

3шт.

15

REF

INSTRUCTION

HEATER ASSEMBLY - cab, see Figure 4-36 and 4-38 for parts

1шт.
