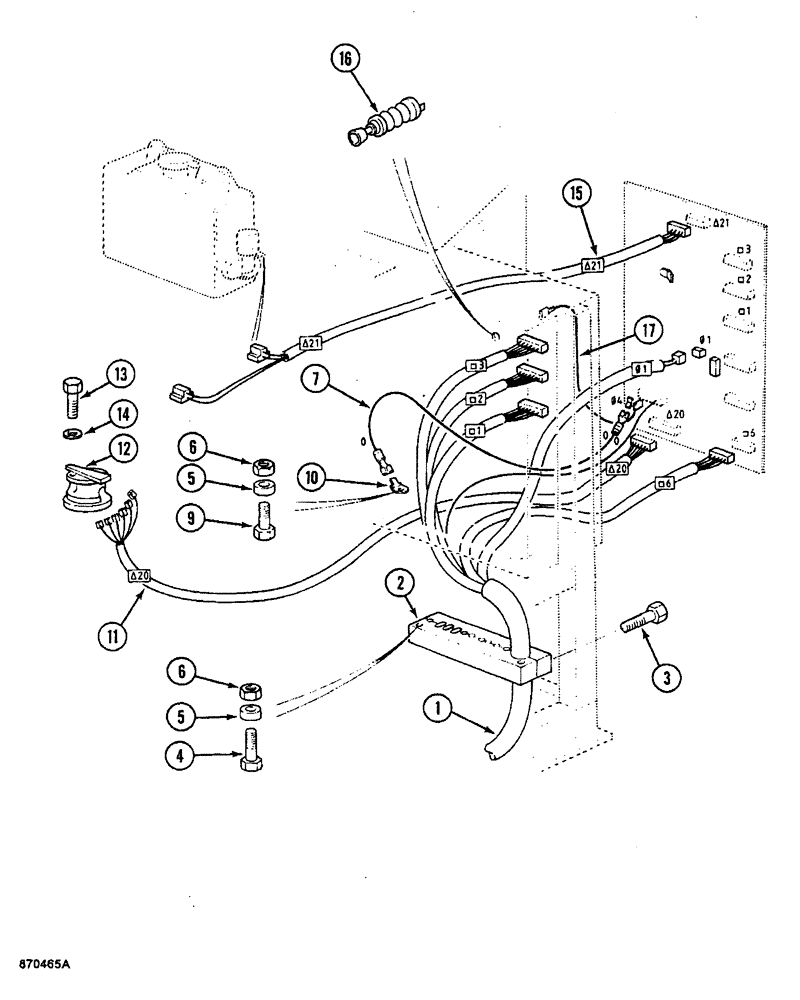

Запчасти Case 688 (4-14) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. FROM 74123 TO 74265 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, instrument panel, see Figure 4-18 for, Serial Range: connections-cab

1шт.

2

P8346231

SHIN

CLAMP ASSEMBLY - harness to panel (Replaces P6546258), Includes: Ref. 3

1шт.

Replaced to improve crossing of harness to the electrical panel. At S/N 74266

1шт.

3

P833828

SCREW

BOLT - hex head, 5 mm x 50 mm

2шт.

4

P833887

SCREW

BOLT - hex head, 5 mm x 40 mm

2шт.

5

P4328718

WASHER

SPACER - screw, 3 mm thick

3шт.

6

P34108

NUT

- hex, 5 mm

3шт.

7

P9247238

ELECTRICAL WIRE

WIRE ASSEMBLY -

1шт.

9

P32538

SCREW

BOLT - hex head, 5 mm x 16 mm

1шт.

10

P640965

CONNECTION

CLIP - wire, male

1шт.

11

P8647290

CABLE

HARNESS - to cab harness socket

1шт.

12

P40745

PEDESTAL

SOCKET - cab harness

1шт.

Ref #12 - Adopted P1340720 Plug & P1340721 Socket.

1шт.

13

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

3шт.

14

P3528799

WASHER

SPACER - bolt, 4 mm thick

3шт.

15

P8647289

HARNESS

- to windshield washer motor

1шт.

16

P1343242

CIGAR LIGHTER

CIGARETTE LIGHTER - electric

1шт.

17

P9247241

ELECTRICAL WIRE

WIRE ASSEMBLY - to cigarette lighter

1шт.
