Запчасти Case 688 (4-08) - ENGINE ELECTRICAL SYSTEM, HARNESS AND ELECTRICAL COMPONENTS (04) - ELECTRICAL SYSTEMS

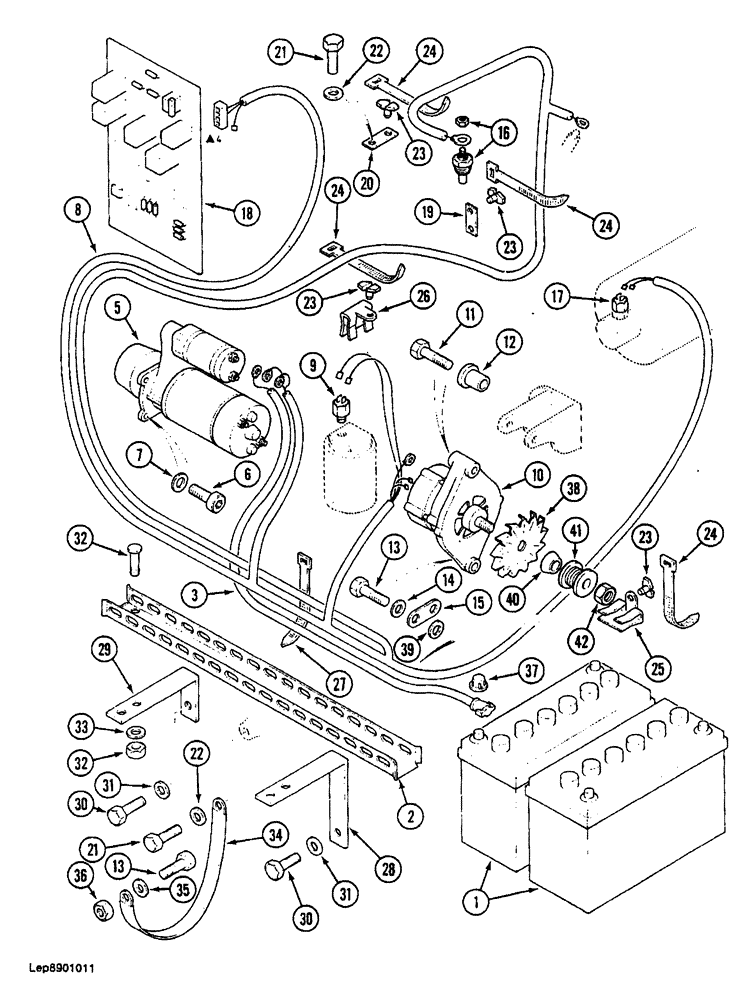

Схема запчастей Case 688 - (4-08) - ENGINE ELECTRICAL SYSTEM, HARNESS AND ELECTRICAL COMPONENTS (04) - ELECTRICAL SYSTEMS
31
32
35
11
28
26
7
24
25
30
12
23
22
14
24
13
22
30
23
31
9
13
20
23
19
2
8
21
42
24
32
33
27
21
5
38
34
16
17
36
29
3
41
6
1
40
23
24
39
14
37
10

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BATTERY - electrical system, see Figure 4-12 for batteries, cables and mounting parts

2шт.

2

P3548329

CHUTE (DOWNWARD)

GUARD - engine harness

1шт.

3

P9247235

CABLE

ASSEMBLY - positive battery, Serial Range: terminal-starter

1шт.

P40920

CLAMP

TERMINAL - battery cable, positive

1шт.

REF

INSTRUCTION

CABLE - battery to starter, 65-3/4" long, cut from P104520

1шт.

P40934

TERMINAL CONNECTOR

TERMINAL - battery cable, at starter solenoid

1шт.

5

REF

INSTRUCTION

STARTER - engine, parts list Figures 4-2 and 4-4

1шт.

6

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

7

P34611

WASHER

- flat, 10 mm

3шт.

8

P9547217

HARNESS

ASSEMBLY - engine wiring

1шт.

9

P1241879

ELECTRO/HYD CONTACT

SENDER - engine oil pressure

1шт.

10

REF

INSTRUCTION

ALTERNATOR - engine electrical, parts list Figure 4-6

1шт.

One A140282 Flat Washer used between the Engine and Brace for the Alternator.

1шт.

11

P33824

SCREW

BOLT - hex, 10 mm x 100 mm

1шт.

12

P2728884

BUSHING

- alternator mounting bolt

1шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

14

P35002

WASHER

- lock, 8 mm

2шт.

15

J903089

SUPPORT

BRACKET - alternator mounting

1шт.

16

P3743277

GAUGE

SENDER - engine temperature (Replaces P41547)

1шт.

17

REF

INSTRUCTION

SENDER - air cleaner filter element indicator, see Figure 2-8

1шт.

18

REF

INSTRUCTION

CIRCUIT BOARD - electrical, see Figure 4-34 for component parts

1шт.

19

P2822851

PLATE

- tie strap retainer

1шт.

20

P3122847

PLATE

- tie strap retainer

3шт.

21

P33840

SCREW

BOLT - hex, 12 mm x 30 mm

3шт.

22

P3528793

WASHER

SPACER - bolt

2шт.

23

P2036939

CLASP

RETAINER - tie strap

8шт.

24

P336923

CLAMP

TIE STRAP - harness, 4-5/8" long

9шт.

25

P2036903

CLASP

CLIP - retainer 5/16" - 1/2" range

3шт.

26

P2036902

CLASP

CLIP - retainer 1/8" - 1/4" range

2шт.

27

P51946

CLAMP

TIP STRAP - harness, 10-1/8 " long

10шт.
