Запчасти Case 688 (4-02) - STARTER, 6T-590 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

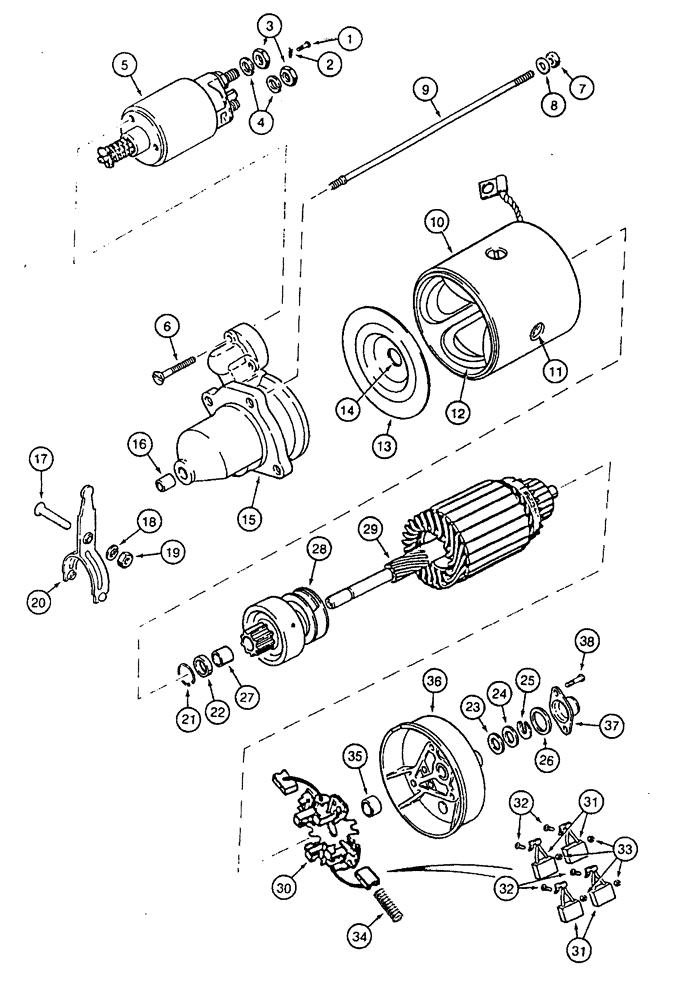

Схема запчастей Case 688 - (4-02) - STARTER, 6T-590 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
21
2
17
5
18
3
24
14
10
25
15
27
9
4
31
38
33
16
32
19
37
13
28
22
26
1
30
31
35
12
29
11
20
7
8
34
36
23
32
6

Артикул

Название

Примечание

Количество

A186142

STARTING MOTOR

STARTER ASSEMBLY -24 volt, Robert Bosh Number 0001368069 (Order D129494), Includes: Ref. 1 - 38

1шт.

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN A186142

1шт.

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

1

K965151

SCREW

SCREW - solenoid

1шт.

2

A186241

CLAMP

CLIP - solenoid

1шт.

3

100016

NUT,M10 x 1.5, Cl 8

NUT, (Solenoid Terminal) M10, Cl 8

2шт.

4

A186240

WASHER

WASHER - lock, terminal nut, 10 mm

2шт.

5

1964679C1

SOLENOID

SOLENOID ASSEMBLY - starter

1шт.

6

K965140

SCREW,M5 x 45mm

SCREW - solenoid mounting

3шт.

7

30208R1

NUT,M6, Cl 10

NUT - through bolt, 6 mm

2шт.

8

3079176R1

WASHER

WASHER - through bolt, 6 mm

2шт.

9

3079355R1

SCREW

BOLT - through

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - coil

1шт.

11

3079552R1

BOLT,Flat

SCREW - coil mounting

4шт.

12

3079428R91

COIL

COIL - filed, includes two brushes and connecting wires as integral part of coil

1шт.

3079253R91

HOUSING, BEARING

BRACKET ASSEMBLY - intermediate, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BRACKET - intermediate

1шт.

14

K260702

BUSHING

BUSHING - bracket

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - drive

1шт.

16

3055738R1

BUSHING

BUSHING - drive housing

1шт.

17

3079430R1

BOLT,Flat

BOLT - pivot, drive actuating lever

1шт.

18

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER - lock, 8 mm

1шт.

19

825-1108

NUT,Hex, M8, Cl 8

NUT - hex, 8 mm

1шт.

20

1964678C1

LEVER

LEVER - drive actuating

1шт.

3079555R91

PACKAGE

KIT - armature parts, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

22

NSS

NOT SOLD SEPARAT

RING - stop

1шт.

23

NSS

NOT SOLD SEPARAT

SHIM - armature

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM - armature

1шт.

25

NSS

NOT SOLD SEPARAT

CLIP - retainer

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - end cover

1шт.

1964677C1

DRIVE

DRIVE ASSEMBLY - starter, Includes: Ref. 27 and 28

1шт.

27

3079254R1

BUSHING

BUSHING - drive

1шт.

28

NSS

NOT SOLD SEPARAT

DRIVE - starter

1шт.

29

3079434R1

ARMATURE

ARMATURE - starter

1шт.

30

3079443R1

BRUSH HOLDER

HOLDER, BRUSH HOLDER ASSEMBLY - brush, includes two brushes and connecting wires as integral part of holder

1шт.

3079435R91

BRUSH, COMMUTATOR

BRUSH KIT - for complete brush replacement, connecting wires are cut and brushes are fastened with screws and nuts, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

BRUSH - starter

4шт.

32

NSS

NOT SOLD SEPARAT

SCREW - brush mounting

4шт.

33

NSS

NOT SOLD SEPARAT

NUT - terminal screw

4шт.

34

3079420R1

SPRING

SPRING - brush tension

4шт.

3079169R91

COVER

HOUSING ASSEMBLY - brush, Includes: Ref. 35 and 36

1шт.

35

3079170R1

BUSHING

BUSHING - brush housing

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - brush

1шт.

37

3079177R1

CAP

COVER - commutator end

1шт.

38

3079426R1

SCREW

SCREW - cover mounting, 5 mm x 15 mm

2шт.

Выбрано товаров: 47
