(3-22) - FUEL INJECTION NOZZLE - 7 MM TIP, 4T-390 ENGINE

Запчасти Case 688 (3-22) - FUEL INJECTION NOZZLE - 7 MM TIP, 4T-390 ENGINE (03) - FUEL SYSTEM

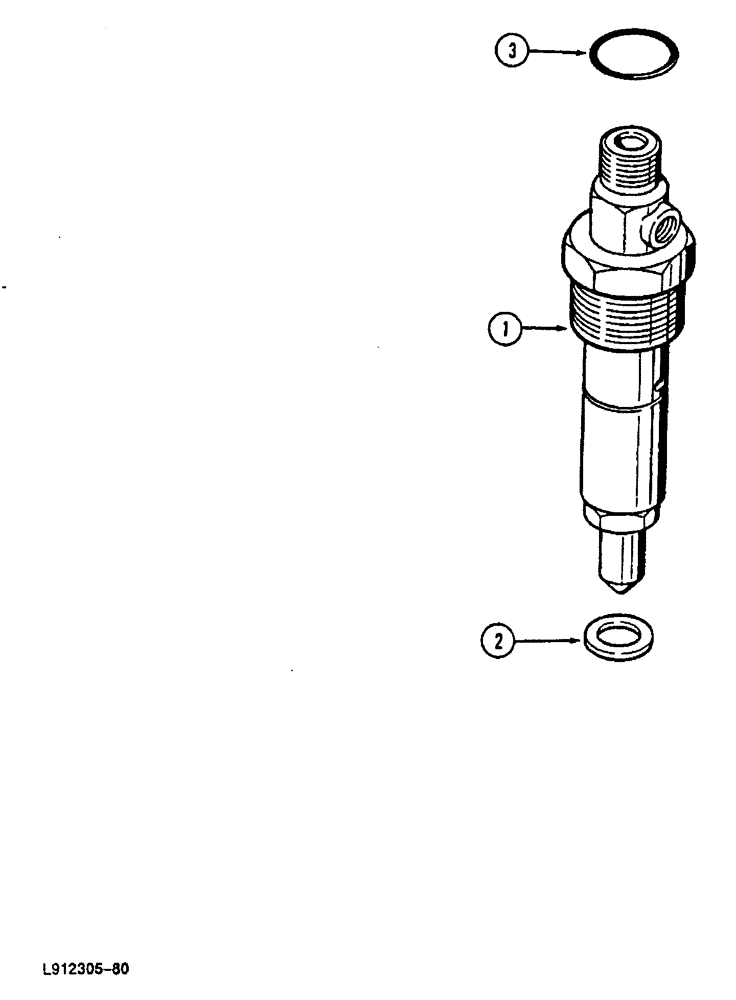

Схема запчастей Case 688 - (3-22) - FUEL INJECTION NOZZLE - 7 MM TIP, 4T-390 ENGINE (03) - FUEL SYSTEM
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J919322

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel, 7 mm tip, Include: Ref. 2

4шт.

2

J920174

PACKING RING

SEAL - injector

1шт.

Whenever a nozzle is removed from the cylinder head, J920174 gasket must be replaced before nozzle is installed in cylinder head.

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

- injector

4шт.
