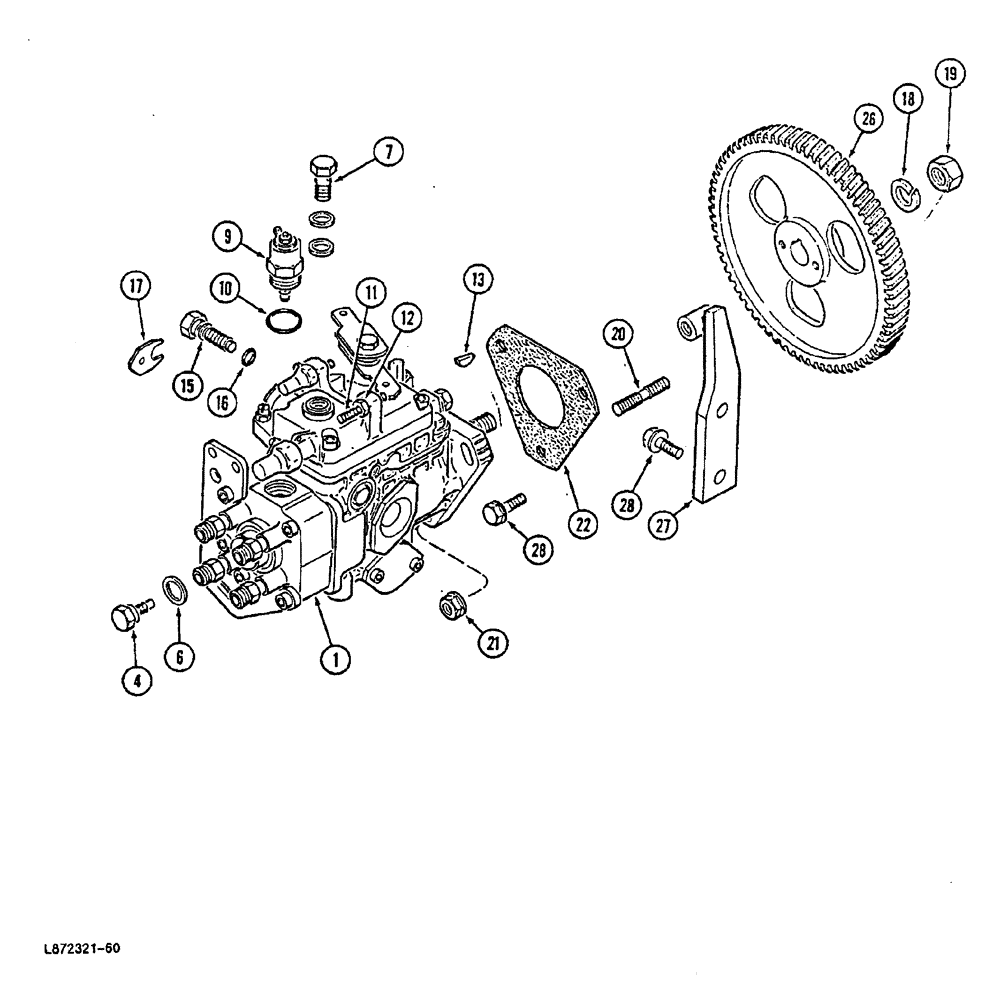

Запчасти Case 688 (3-18) - FUEL INJECTION SYSTEM, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J917027

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (Replaces J910628), Includes: Ref. 4 - 19

1шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

J903573

GASKET

- vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - overflow

1шт.

9

J903576

SOLENOID

ASSEMBLY - shut down, 24 volt

1шт.

10

J903577

SEAL

- solenoid

1шт.

11

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

12

J904783

NUT

- idle screw

1шт.

13

J902332

KEY

- retainer, pump gear

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

- timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

- timing lock screw

1шт.

17

J904786

PLATE

- timing lock

1шт.

18

92-9

BEARING WASHER,9/16"

1шт.

19

J903738

NUT

- hex, 14 mm

1шт.

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

- delivery valve

1шт.

20

J902501

STUD

- pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

- hex flange, 8 mm

3шт.

22

J914389

GASKET

- pump mounting

1шт.

26

J912885

PINION

GEAR - pump drive (Replaces J914912)

1шт.

27

J905313

LEVER

BRACE - fuel pump

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange, M8 x 1.25 x 20 mm

3шт.
