Запчасти Case 688 (3-16) - FUEL INJECTION SYSTEM, 4T-390 DIESEL ENGINE (03) - FUEL SYSTEM

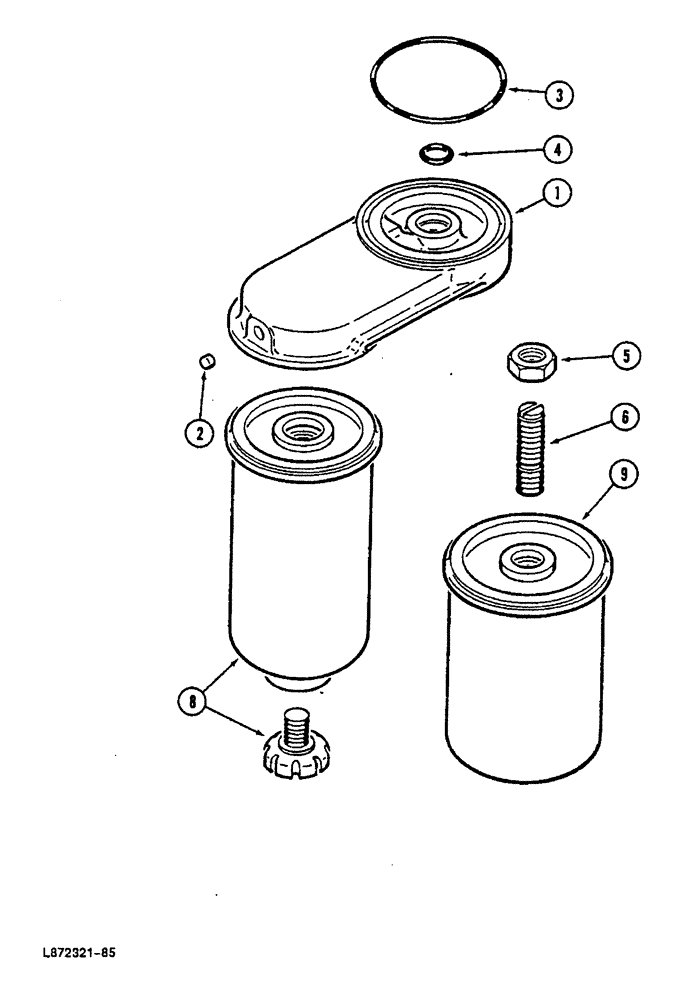

Схема запчастей Case 688 - (3-16) - FUEL INJECTION SYSTEM, 4T-390 DIESEL ENGINE (03) - FUEL SYSTEM
8
2
4
5
3
6
9
1

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter (Replaces J904362)

1шт.

2

211-101

BALL,1/4" Dia, Stainless

- 1/4 inch, grade 25, stainless steel

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

Выбрано товаров: 8
