(3-08) - ENGINE FUEL LINES AND FITTINGS, P.I.N. FROM 74123 TO 74264

Запчасти Case 688 (3-08) - ENGINE FUEL LINES AND FITTINGS, P.I.N. FROM 74123 TO 74264 (03) - FUEL SYSTEM

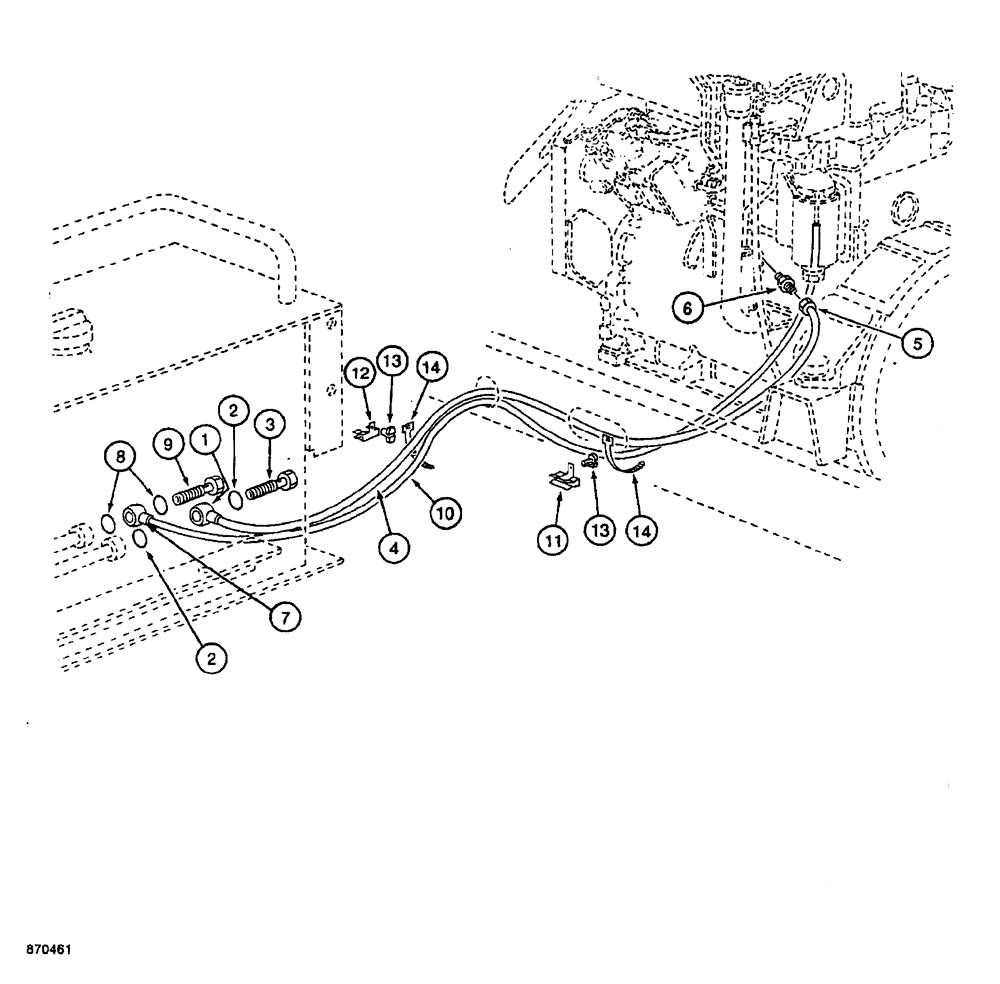

Схема запчастей Case 688 - (3-08) - ENGINE FUEL LINES AND FITTINGS, P.I.N. FROM 74123 TO 74264 (03) - FUEL SYSTEM
4
6
3
5
10
14
7
2
1
13
8
13
11
14
2
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P1337052

FITTING

CONNECTOR - fuel hose, at tank

1шт.

2

P45239

WASHER, SEALING

GASKET - connector

2шт.

3

P730011

BANJO BOLT

BOLT - fuel hose connector

1шт.

4

REF

INSTRUCTION

HOSE - 8 mm ID, tank to injection pump, 70-7/8" long, cut from P3682

1шт.

5

P4037565

FITTING

CONNECTOR - straight, fuel hose

1шт.

6

P4037524

FITTING

ADAPTER - striaght, fuel, Serial Range: hose-engine

1шт.

7

P1337053

FITTING

CONNECTOR - fuel return, Serial Range: hose-tank

1шт.

8

P5346094

SEAL

GASKET - connector, at tank

2шт.

9

P730090

BANJO BOLT

BOLT - fuel hose connector, at tank

1шт.

10

REF

INSTRUCTION

HOSE - 4 mm ID, fuel return to tank, 70-7/8" long, cut from P3683

1шт.

11

P2036902

CLASP

CLIP - retainer, 3 mm - 7 mm range

1шт.

12

P2036903

CLASP

CLIP - retainer, 8 mm - 13 mm range

3шт.

13

P2036939

CLASP

RETAINER - tie strap

4шт.

14

P51946

CLAMP

TIE STRAP - fuel, Serial Range: hose-retainer

8шт.
