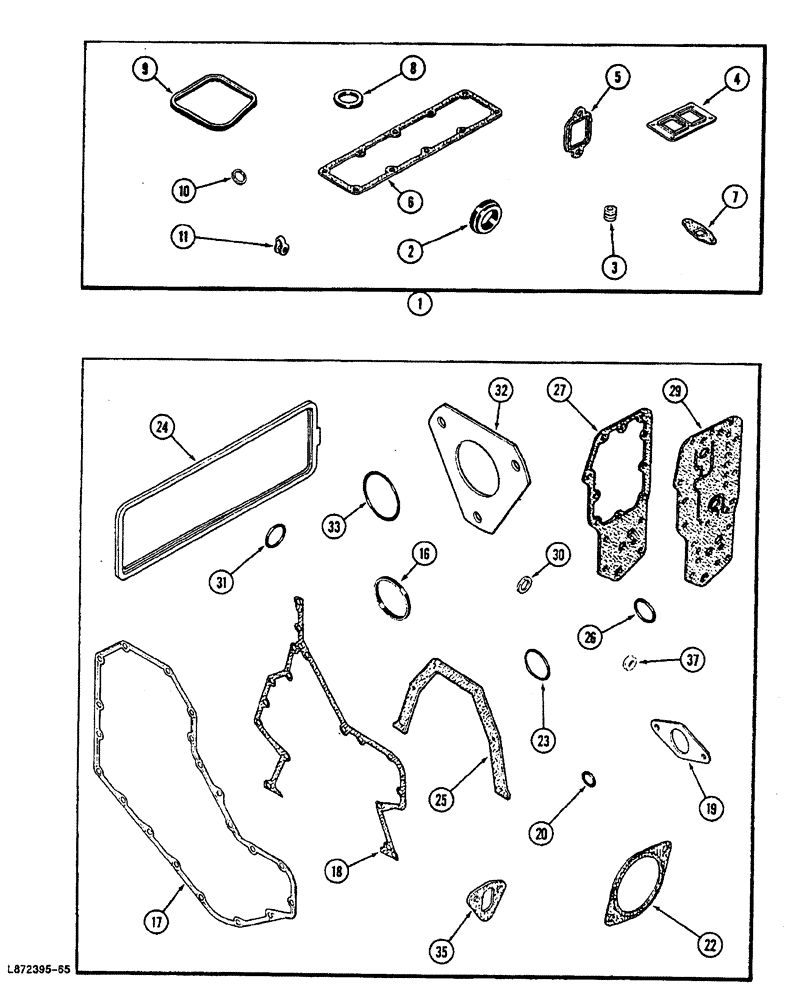

Запчасти Case 688 (2-44) - ENGINGE GASKET KITS, 4T-390 ENGINE, VALVE GRIND (02) - ENGINE

1

A77672

GASKET KIT

- valve grind, engine, (A77481), Includes: Ref. 2 - 11

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-.

1шт.

2

J920020

GASKET

- thermostat, (Replaces J903301)

1шт.

3

J901097

SEAL

- valve

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold, (Replaces J901999)

1шт.

7

J914388

GASKET

- oil drain tube, (Replaces J901805)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker cover

4шт.

10

J900808

SEAL

- injector

4шт.

11

J903380

SEAL

- connector

4шт.

15

A77671

GASKET KIT

- engine block (Replaces A77480), cylinder, Includes: Ref. 16 - 37

1шт.

For complete engine overhaul, order 1 - valve grind kit, 1 - cylinder block kit, 1 - oil pan kit, Page 2-, front and rear crankshaft seal kit, Fig. 2-, and required cylinder head gasket, Fig. 2-.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, cylinder block

1шт.

17

J914385

GASKET,1.02mm Thk

- cover to housing, (Replaces J910500), cylinder block

1шт.

18

J916131

GASKET

- gear housing, (Replaces J907836), cylinder block

1шт.

19

J905595

GASKET

- pin housing, cylinder block

1шт.

20

J913994

O-RING

- sealing, (Replaces J903927), cylinder block

1шт.

22

J913192

GASKET

- cover plate, (Replaces A77441), cylinder block

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1), Cylinder block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J904056

GASKET

- tappet cover, cylinder block

1шт.

25

J914386

GASKET

- seal retainer, (Replaces J901019), cylinder block

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm IDwater inlet, cylinder block

1шт.

27

J918256

GASKET

- cooler core (Replaces J914387, J904427), cylinder block

1шт.

29

J918257

GASKET

- filter head (Replaces J912532, J905589), cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, cylinder block

1шт.

32

J914389

GASKET

- fuel pump, (Replaces J905685), cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, cylinder

1шт.

35

J914304

GASKET

- fuel lift pump, (Replaces J904044), cylinder block

1шт.

37

J900267

SEAL

- cover bolt, cylinder block

4шт.
