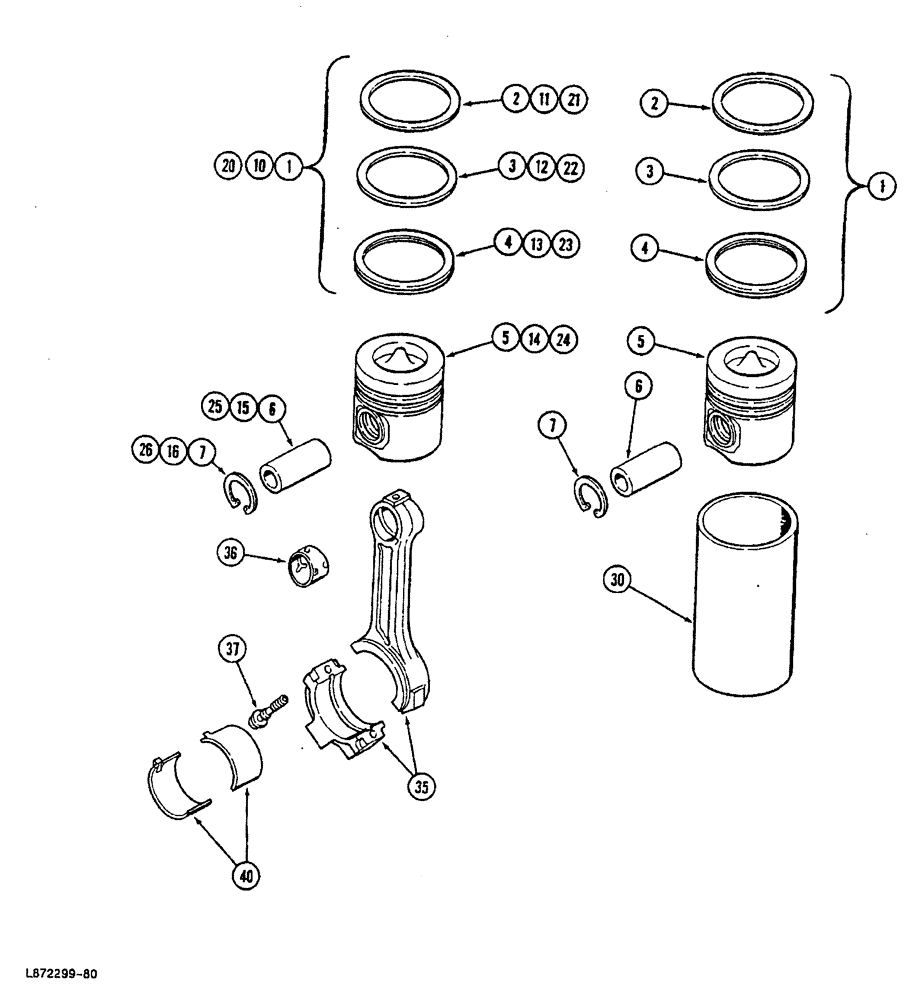

Запчасти Case 688 (2-42) - PISTONS, 4T-390 ENGINE (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT - engine (Standard) (Replaces A77419), Includes: Ref. 1 - 7

4шт.

1

A77727

PISTON RING SET

RING KIT - piston (Standard) (Replaces A77500), Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine (Standard) (Stamped 7163)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

J904166

SLEEVE

LINER - piston (Used only in engine block repair) (When liner is installed, use only A77730 Piston Kit)

1шт.

A77731

PISTON & RINGS KIT

PISTON KIT - engine (0.5 mm oversize) (Replaces A77638), Includes: Ref. 10 - 16

4шт.

10

A77728

PISTON RING SET

RING KIT - engine (0.5 mm oversize) (Replaces A77501), Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - engine (0.5 mm oversize) (Stamped 8815)

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77732

PISTON

KIT - engine (1.0 mm oversize) (Replaces A77637), Includes: Ref. 20 - 26

4шт.

20

A77729

PISTON RING SET

RING KIT - engine (1.0 mm oversize) (Replaces A77502), Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING - cpmpression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - compression (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - engine (1.0 mm oversize) (Stamped 8816)

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 36 and 37

4шт.

84145405R

REMAN-CONNECTING ROD

688 PRIOR TO S/N CGG0011601, Reman For New P/N J901569

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod to piston pin (Order J901569), connecting

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, MJ11 x 1.25 x 59 mm, connecting rod

2шт.

40

A77465

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, standard)

4шт.

40

A77466

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.25 mm undersize)

4шт.

40

A77467

BEARING LINER

BEARING KIT - connecting rod (set, upper and lower, 0.5 mm undersize)

4шт.

40

A77468

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 0.75 mm undersize)

4шт.

40

A77469

BEARING SET

BEARING KIT - connecting rod (set, upper and lower, 1.0 mm undersize)

4шт.
