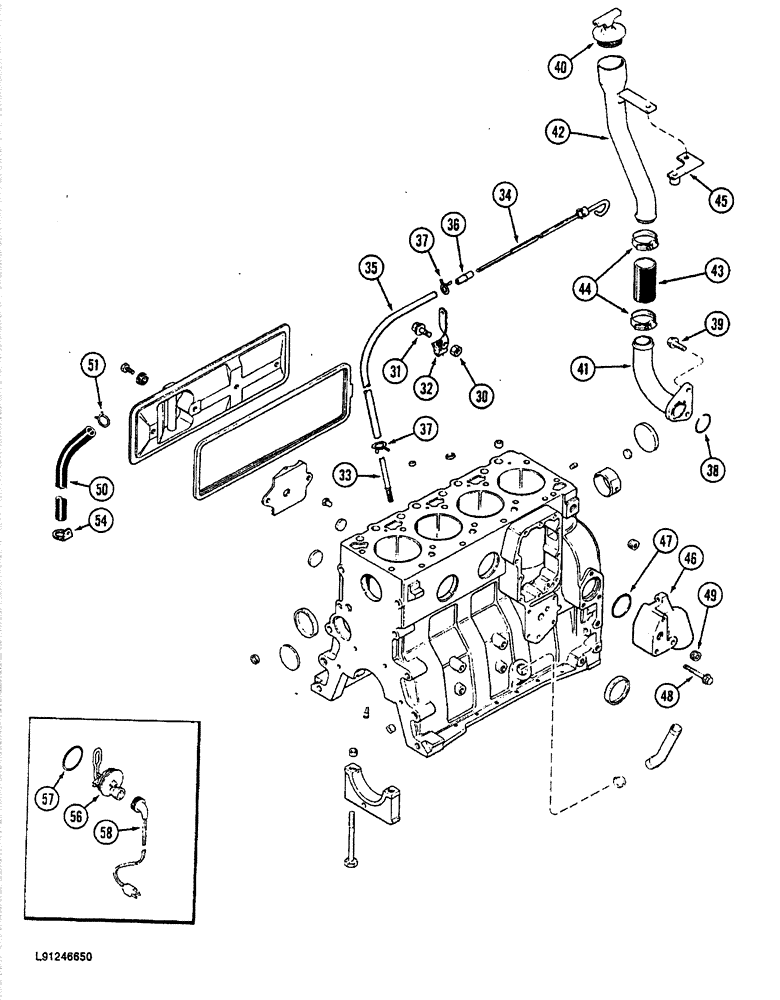

Запчасти Case 688 (2-36) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

30

J900240

NUT

- hex, 8 mm

1шт.

31

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- hex flange, 8 mm - 1.25 x 16 mm

1шт.

32

J905804

BRACKET

BRACE - tube

1шт.

33

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick

1шт.

34

J907709

DIPSTICK

- oil level gauge

1шт.

35

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

- oil gauge, flexible

1шт.

Ref #35, #36 & #37 - Replaced by J918384

1шт.

36

J905802

FITTING,9.53 mm OD x 39 mm L

END - oil gauge tube

1шт.

Ref #35, #36 & #37 - Replaced by J918384

1шт.

37

214-103

HOSE CLAMP,#8, 1/2", Spring

CLAMP - spring type, 1/2 inch

2шт.

Ref #35, #36 & #37 - Replaced by J918384

1шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

1шт.

39

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex flange, 12 mm - 1.75 x 25 mm

2шт.

40

A77424

FILLER CAP

CAP - oil fill tube

1шт.

41

J912687

TUBE,38.1 mm ID x 195.9 mm L

- oil fill

1шт.

42

J912689

TUBE,38.1 mm OD x 371.1 mm L

- oil fill extension

1шт.

43

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill Connection 1.50 mm ID x 84.00 mm

1шт.

44

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

45

J912683

TUBE

BRACKET - oil fill

1шт.

46

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

47

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

48

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- hex flange head, 10 mm - 1.50 x 75 mm

3шт.

49

A77429

PLUG

- hex socket pipe, 1/2 inch PT

2шт.

50

J906593

HOSE

Breather

1шт.

51

J904230

CLAMP,25.4mm

- spring hose

1шт.

54

J909670

CLIP

- retaining

1шт.

A77634

KIT

HEATER KIT - engine block, Includes: Ref. 56 and 57

1шт.

56

J916127

RESISTOR

HEATER - engine heater, 750 watt, 120 volt, block

1шт.

J916662

UNIT HEATER

engine, 750 watt, 240 volt

1шт.

57

J905113

CABLE

engine block heater, 120 volt

1шт.

112837A1

PLUG

CABLE, 240 volt

1шт.

58

J910517

O-RING

- heater sealing, engine block heater

1шт.
