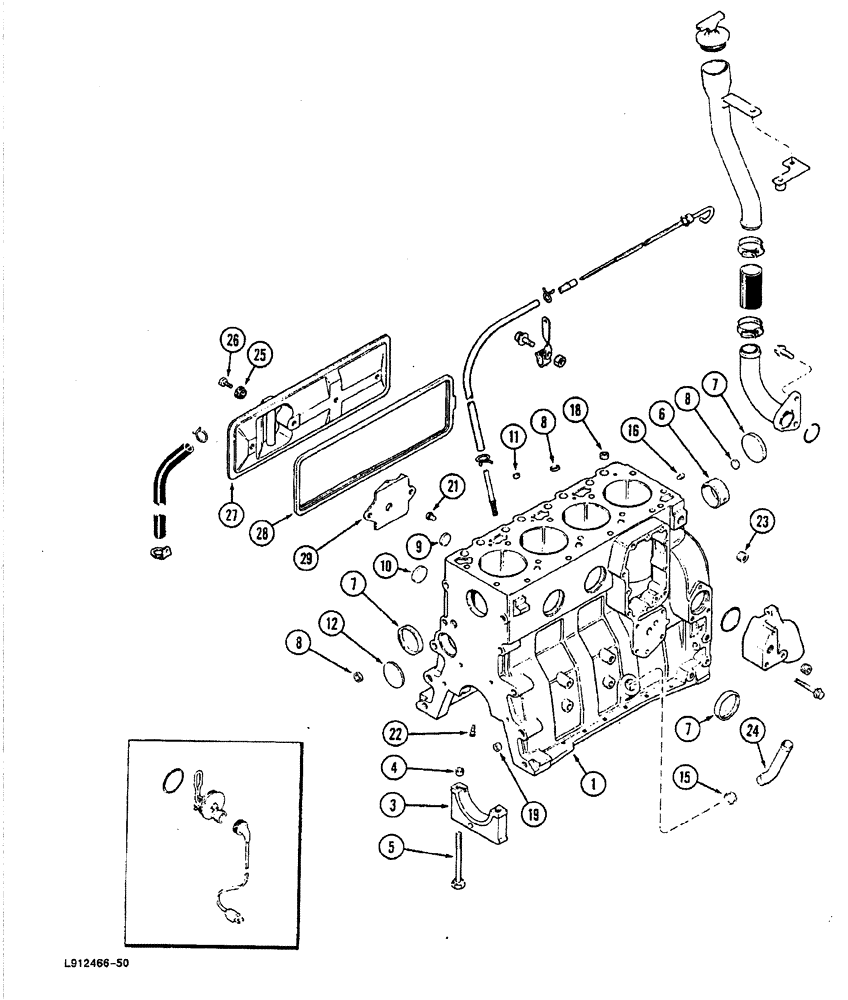

Запчасти Case 688 (2-34) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

A174149

ENGINE ASSEMBLY

ENGINE ASSY replaced A174003, has new fan bracket support J913433

1шт.

1989060C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - 4T-390, complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe) (1.1 to 1 Ratio) (See Page 2-19)

1шт.

1989092C2

BASIC ENGINE

new

1шт.

1989092C2 includes all parts except: starter alternator, fan, fan bracket, air cleaner, muffler, exhaust manifold and pipe, flywheel and housing, oil fill and dipstick fuel injection pump, injectors and lines front crank pulley, turbocharger and belt tensionner

1шт.

1989092C3R

REMAN-BASIC ENGINE

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

A77759

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Replaces J905378) (Order short block and J905376 kit), Includes: Ref. 3 - 9

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

A77757

CRANKCASE

BLOCK ASSEMBLY - stripped, engine (Replaces J905376) (Order block and J920399 kit), Includes: Ref. 3 - 9

1шт.

3

J900967

BEARING CAP

CAP - main bearing

5шт.

4

J900068

BEARING WASHER

DOWEL - ring, bearing cap

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - bearing cap, special

10шт.

6

REF

INSTRUCTION

BUSHING - camshaft front (See Fig. 2-48)

1шт.

7

J900965

PLUG

PLUG - expansion, 58.1 mm OD

4шт.

8

J900956

PLUG

PLUG - expansion, 17.9 mm OD

3шт.

9

A77539

PLUG

PLUG - expansion, 25.7 mm OD

2шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, (Replaces J905813), Includes: Ref. 10 - 23

1шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

11

J900955

PLUG

PLUG - expansion, 9.8 mm OD

1шт.

12

J900687

PLUG

PLUG - expansion, (Welch), 60.3 mm OD

1шт.

15

A77439

PLUG

PLUG - expansion, 22.5 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

18

J902343

DOWEL

DOWEL - ring, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

PLUG - hex socket head, 1/8 inch PT

2шт.

22

J919002

NOZZLE CAP

NOZZLE - piston cooling, (Replaces J901020)

4шт.

23

A77429

PLUG

PLUG - hex socket head, 1/2 inch PT

1шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

25

J900267

SEAL

SEAL ASSEMBLY - cover bolt

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 16 mm

4шт.

27

J916441

COVER

COVER - tappet

1шт.

28

J904056

GASKET

GASKET - tappet cover

1шт.

29

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

A174003

ENGINE ASSEMBLY

ENGINE ASSY

1шт.
