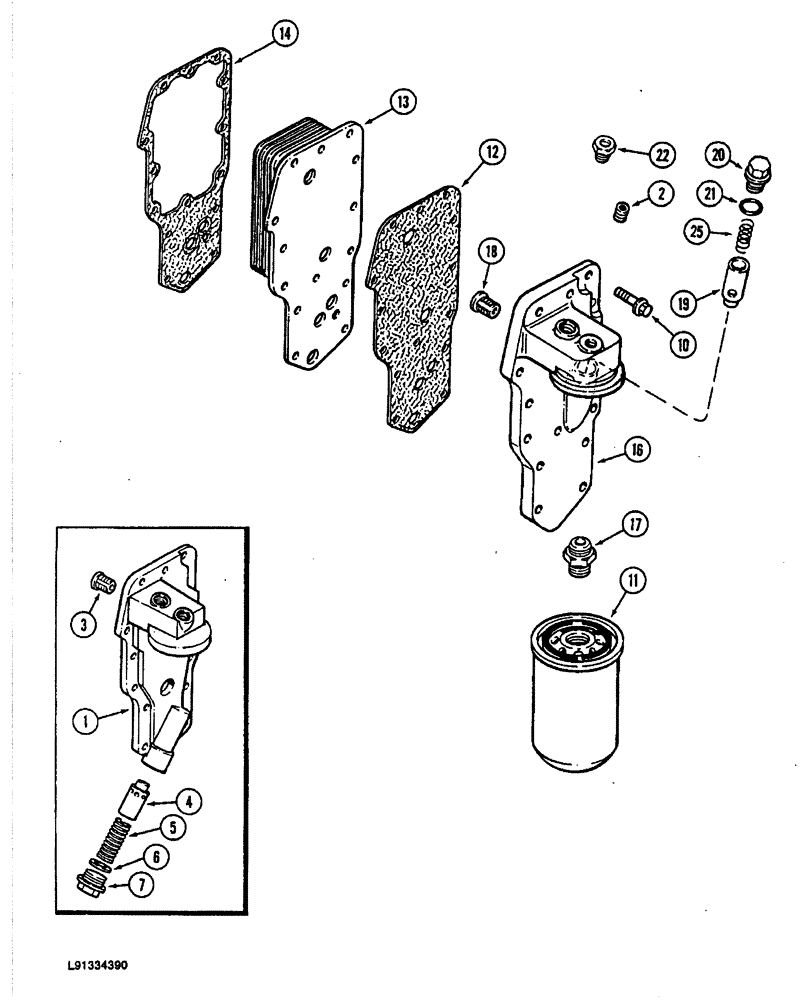

Запчасти Case 688 (2-24) - OIL FILTER AND COOLER, 4T-390 DIESEL ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - filter, lube oil, (For repairs oder kit J915766)

1шт.

2

J906619

PLUG,1/8" - 27

- hex pipe, 1/8-27 inch PT

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure

1шт.

5

J903261

SPRING

- compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

7

J904386

PLUG

- regulator valve

1шт.

10

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- hex flange head, 8 mm x 1.25 x 35 mm

14шт.

11

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - lube oil (cartridge)

1шт.

12

J918257

GASKET

- filter head, (Replaces J914387, J904427)

1шт.

13

J918292

COOLER

- oil, (Replaces J904320)

1шт.

14

J918256

GASKET

- cooler core, (Replaces J914387, J904427)

1шт.

J915766

KIT

HEAD ASSEMBLY - filter and cooler, oil, Includes: Ref. 16 - 21

1шт.

16

J915243

FILTER COVER

HEAD ASSEMBLY - filter and cooler

1шт.

17

J909355

ADAPTER

- filter head

1шт.

18

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

19

J918428

PLUNGER

- regulator, pressure

1шт.

Part of oil pressure regulator kit P/N A77764

1шт.

20

J915787

PLUG

- pipe, (Replaces J904036)

1шт.

21

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- pipe, (Replaces J902425)

1шт.

22

A77428

PLUG

- hex socket pipe, 1/4-18 inch PT

1шт.

25

J918427

SPRING

- compression

1шт.

Part of oil pressure regulator kit P/N A77764

1шт.

A77764

PACKAGE

KIT - oil pressure regulator: Includes: Ref. 19 and 25

1шт.
