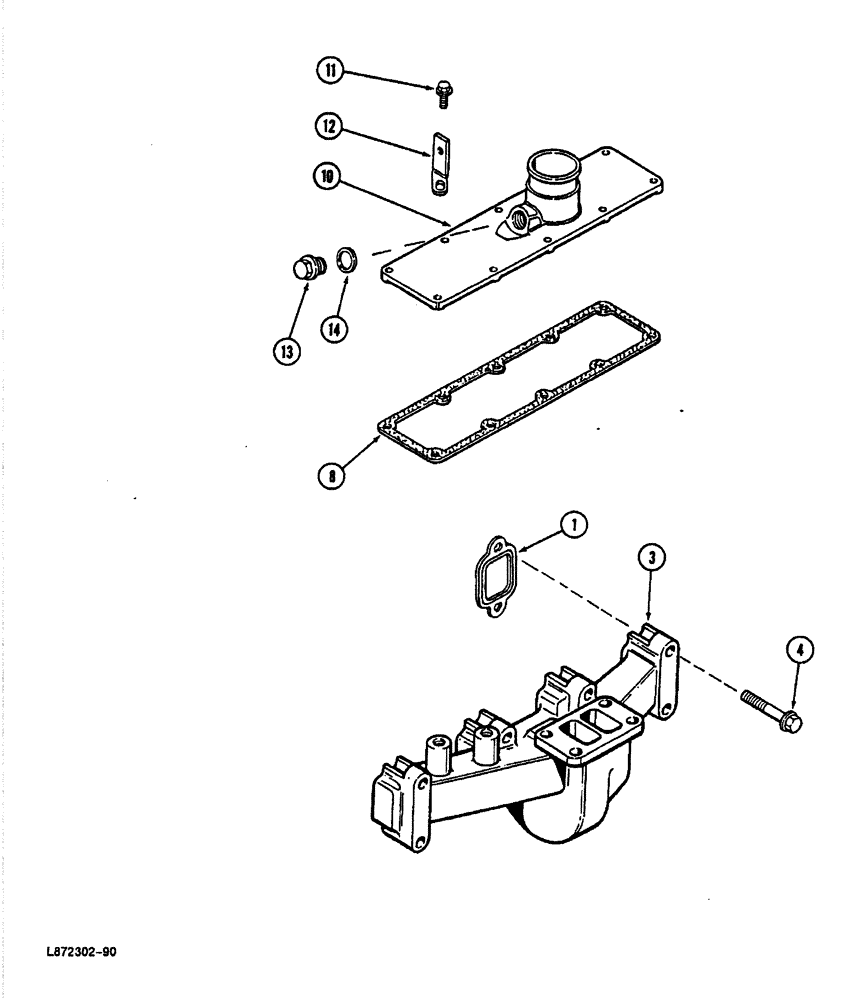

Запчасти Case 688 (2-22) - MANIFOLDS EXHAUST, 4T-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

- enhaust manifold

4шт.

3

J901635

MANIFOLD

- exhaust

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- hex flange, 10 mm - 1.50 x 65 mm, 10.9

8шт.

8

J914028

GASKET

- intake manifold, (Replaces J901999)

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Order A77416 kit)

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold (Replaces J904341) Hex Flg Hd, M8 x 1.25 x 25

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube (See Figure 3-14), intake

1шт.

13

J907185

PLUG

ASSEMBLY - manifold, intake

1шт.

14

J906773

WASHER

- plug sealing, intake

1шт.

A77416

COVER

KIT - intake manifold, (Includes Ref 10, 13 and 14)

1шт.
