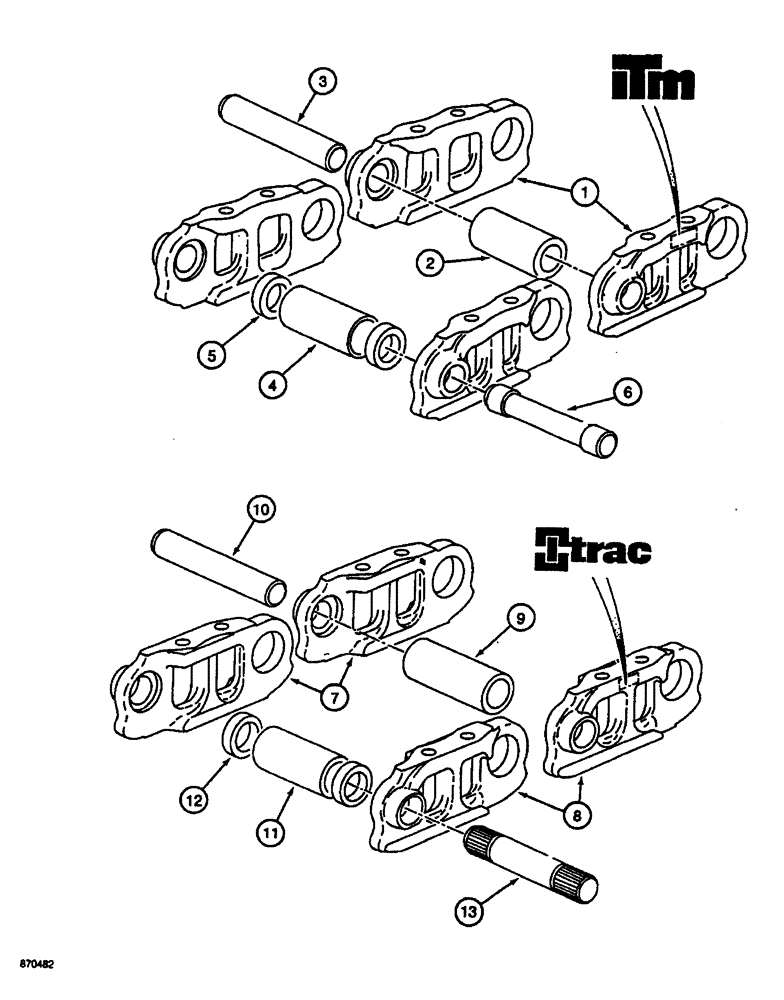

Запчасти Case 688 (5-18) - TRACK CHAIN, LINKS AND PINS (11) - TRACKS/STEERING

P1642339

CHAIN (CE)

CHAIN ASSEMBLY - track, 44 link, ITM identification, Include: Ref. 1 - 6

1шт.

1

P1642380

LINK

- track, set, includes one right-hand and one left-hand link

44шт.

2

P2229341

SPACER

BUSHING - standard pin

43шт.

3

P427387

PIN

- standard

43шт.

4

P2229340

SPACER

BUSHING - master pin

1шт.

5

P1145510

SPACER

- master pin

2шт.

6

P3627811

PIN

- master

1шт.

P1642339

CHAIN (CE)

CHAIN ASSEMBLY - track, 44 link, INTERTRAC identification, Include: Ref. 7 - 13

2шт.

7

P1542358

LINK

- track, right-hand

44шт.

8

P1542355

LINK

- track, left-hand

44шт.

9

P829383

SPACER

BUSHING - master pin

43шт.

10

P3627876

PIN

- standard

43шт.

11

P829382

SPACER

BUSHING - master pin

1шт.

12

P2229315

SPACER

- master pin

2шт.

13

P1627853

PIN

- master (Order 1 @ P6427812, 1 @ P1542358, 1 @ P1542355) {See S.A.T. INFORMATIONS N

1шт.

0} 47

1шт.
