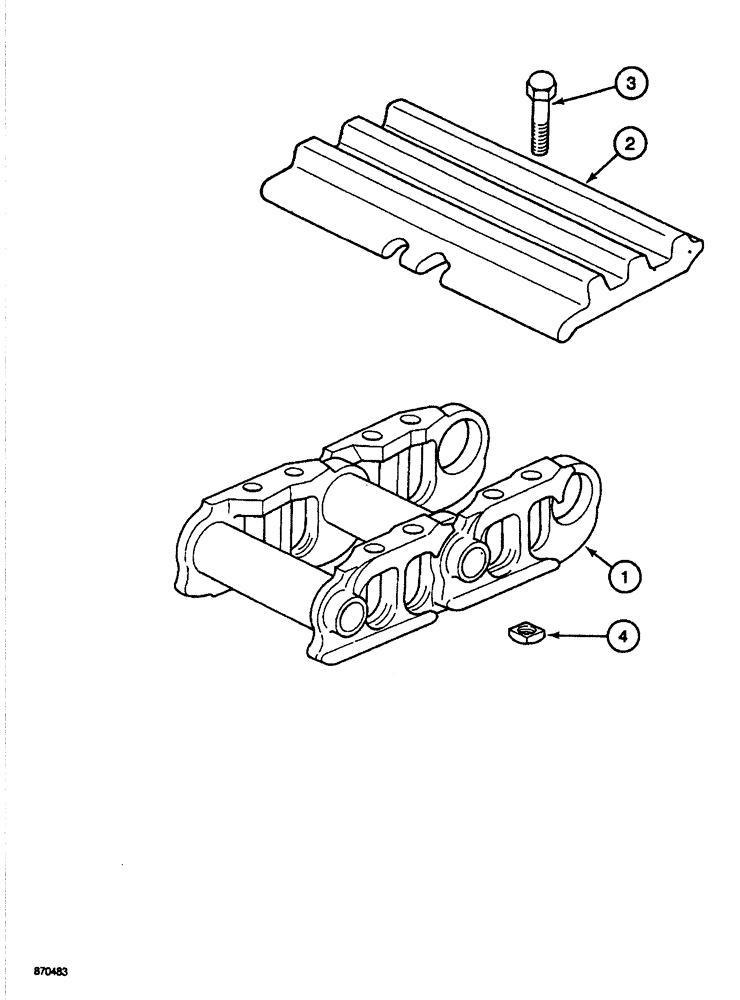

Запчасти Case 688 (5-16) - TRACK SHOES (11) - TRACKS/STEERING

1

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see Figure 5-16

2шт.

2

P1642310

TRACK SHOE

- grouser, 24" long (Order 1 @ P2042351, 4 @ P3533058, 4 @ P2434593) {See S.A.T. Informations N

88шт.

0} 58.

1шт.

3

P33041

SCREW

BOLT - track shoe, special (Order 1 @ P3533058, 1 @ P2434593) {See S.A.T. Informations N

352шт.

0} 58.

1шт.

4

P134514

NUT

- track shoe, special (Order 1 @ P3533058, 1 @ P2434593) {See S.A.T. Informations N

352шт.

0} 58.

1шт.

P1842318

TRACK SHOE

GROUSER, adopt, 28"

1шт.

P3533058

SCREW

BOLT, adopt, 9/16"

1шт.

P2434593

NUT

1шт.

P3533059

SCREW

BOLT, adopt. 5/8"

1шт.

P24334592

NUT

1шт.
