(5-12) - TRACK ROLLER, P.I.N. FROM 74123 TO 74485, 11501 TO 11639

Запчасти Case 688 (5-12) - TRACK ROLLER, P.I.N. FROM 74123 TO 74485, 11501 TO 11639 (11) - TRACKS/STEERING

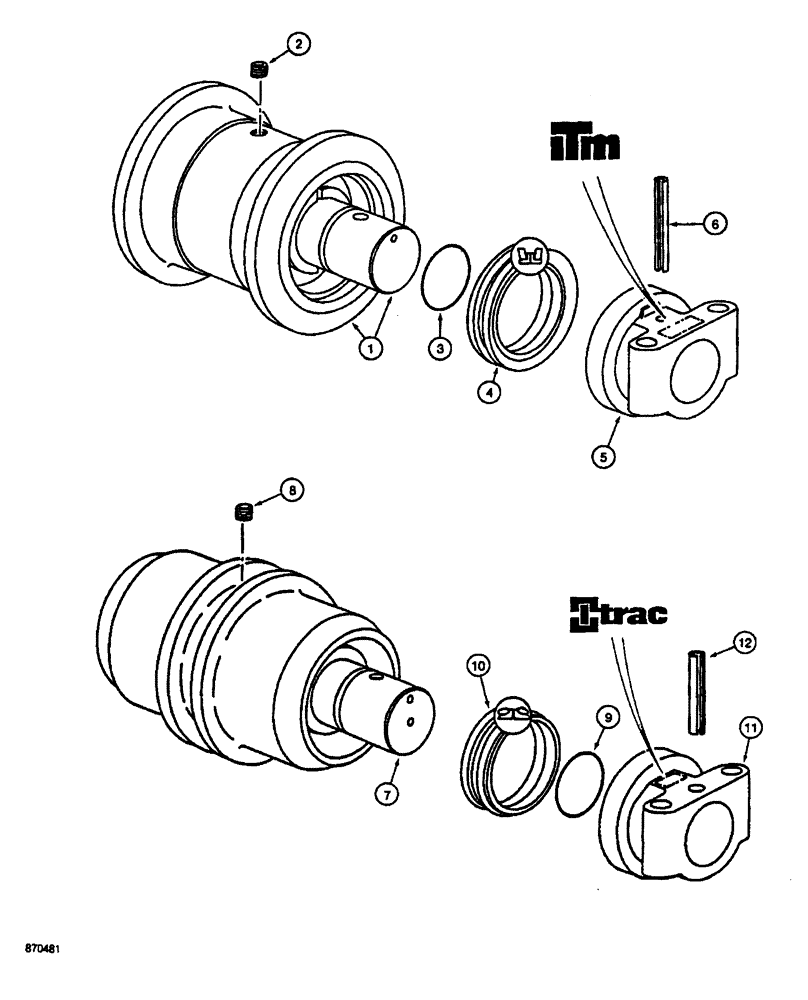

Схема запчастей Case 688 - (5-12) - TRACK ROLLER, P.I.N. FROM 74123 TO 74485, 11501 TO 11639 (11) - TRACKS/STEERING
11
8
4
1
12
6
10
5
2
7
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1842315

TRACK ROLLER

ASSEMBLY - complete, ITM identification, (order P2042382) (see Figure 5-14), Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track

1шт.

2

P2537482

PLUG

- filler, track roller

1шт.

3

P2230412

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- roller shaft

2шт.

4

P8046018

SET OF GASKET

SEAL - oil, roller shaft

2шт.

5

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

6

P435739

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: bracket-roller

2шт.

P1842315

TRACK ROLLER

ASSEMBLY - complete, INTERTRAC identification, (order P2042382) (see Figure 5-14), Includes: Ref. 7 - 12

14шт.

7

NSS

NOT SOLD SEPARAT

ROLLER ASSEMBLY - track

1шт.

8

P2537437

PLUG

- filler, track roller

1шт.

9

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- roller shaft

2шт.

10

P8046017

SET OF GASKET

SEAL - oil, roller shaft

2шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - mounting, track roller

2шт.

12

P435740

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: bracket-roller

2шт.
