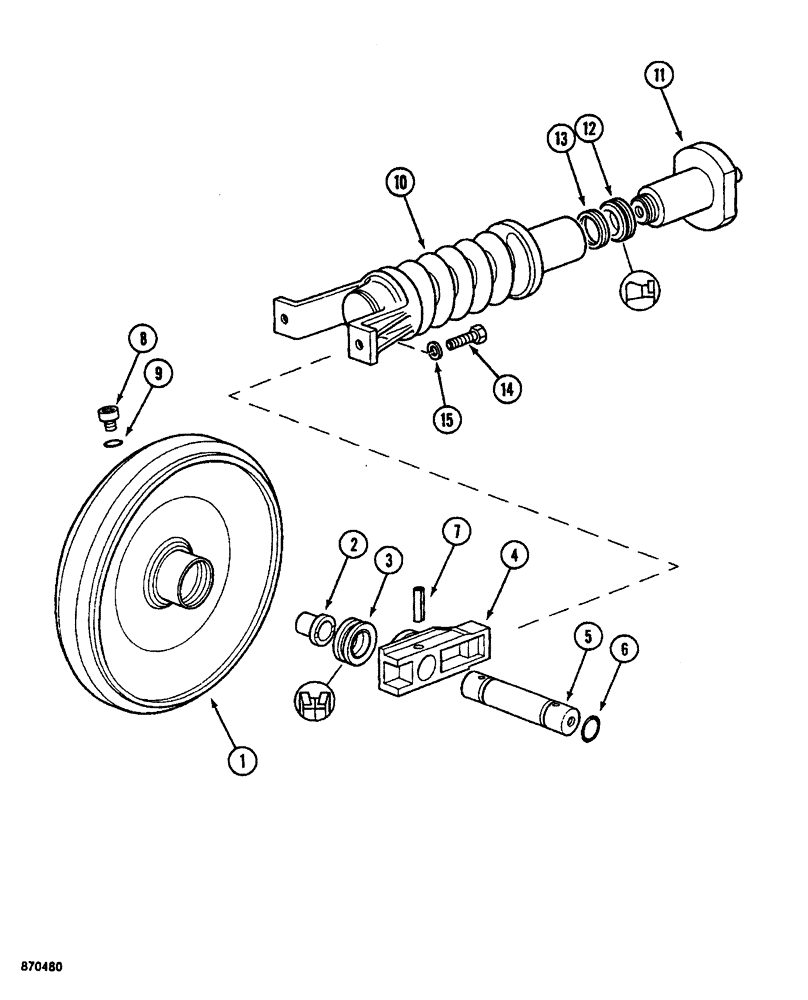

Запчасти Case 688 (5-08) - TRACK IDLER AND ADJUSTMENT CYLINDER, ITM IDENTIFICATION (11) - TRACKS/STEERING

P1842387

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL - idler

1шт.

2

P1929039

BUSHING

- idler wheel

2шт.

3

P8046018

SET OF GASKET

SEAL ASSEMBLY - oil, idler wheel

2шт.

4

P1842388

SLIPPER

BRACKET - idler wheel

2шт.

5

P5327894

SHAFT

- idler wheel

1шт.

6

P8046055

SEAL,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

O-RING - idler shaft

2шт.

7

P435739

SPLIT PIN/SAFETY PIN

ROLL PIN - idler, Serial Range: shaft-bracket

2шт.

8

P3037427

PLUG

- filter, idler wheel

1шт.

9

P2230482

O-RING

- filler plug

1шт.

10

P7646260

SHOCK ABSORBER

SPRING AND CYLINDER TUBE - track adjustment

2шт.

11

P7646261

PISTON

- adjustment cylinder

2шт.

12

P3946055

SEAL

- piston, inner

2шт.

13

P151234

WIPER SEAL

SEAL - piston, outer

2шт.

14

P133802

SCREW

BOLT - hex, 16 mm x 40 mm

4шт.

15

P34715

WASHER, LOCK

WASHER - lock, 16 mm

4шт.
