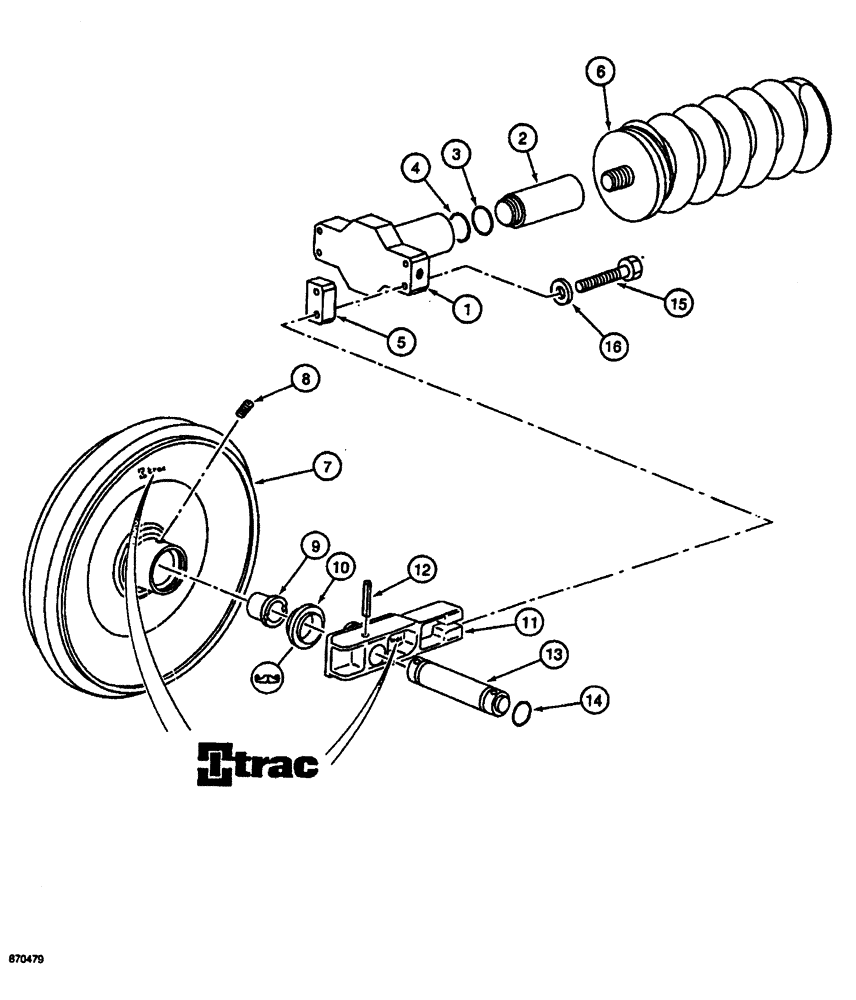

Запчасти Case 688 (5-06) - TRACK IDLER AND ADJUSTMENT CYLINDER, INTERTRAC IDENTIFICATION (11) - TRACKS/STEERING

P7646204

SHOCK ABSORBER

CYLINDER ASSEMBLY - track adjustment, Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET AND CYLINDER - track adjustment

1шт.

2

P7646202

PISTON

- adjustiment cylinder

1шт.

3

P8046019

SEAL

- piston, inner

1шт.

4

P8046072

SEAL

- piston, outer

1шт.

5

P4620344

BLOCK ASSY.

BLOCK - mounting, adjustment cylinder

2шт.

6

P7646201

SHOCK ABSORBER

SPRING - track, shock absorber

2шт.

P1842314

FRONT IDLER

IDLER ASSEMBLY - track, Includes: Ref. 7 - 14

2шт.

7

NSS

NOT SOLD SEPARAT

WHEEL - idler

1шт.

8

P2537437

PLUG

- filler, idler wheel

1шт.

9

P2728876

BUSHING

- idler wheel

2шт.

10

P8846056

SET OF GASKET

SEAL ASSEMBLY - oil, idler wheel

2шт.

11

P1842375

SLIPPER

BRACKET - idler wheel

2шт.

12

P435741

SPLIT PIN/SAFETY PIN

ROLL PIN - idler, Serial Range: shaft-bracket

2шт.

13

P1827648

SHAFT

- idler wheel

1шт.

14

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- idler shaft

2шт.

15

P133887

SCREW

BOLT - hex, 12 mm x 110 mm

4шт.

16

P1945376

WASHER

- flat, 12 mm

4шт.
