(2-14) - ENGINE MOUNTING AND ADAPTING PARTS

Запчасти Case 688 (2-14) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE

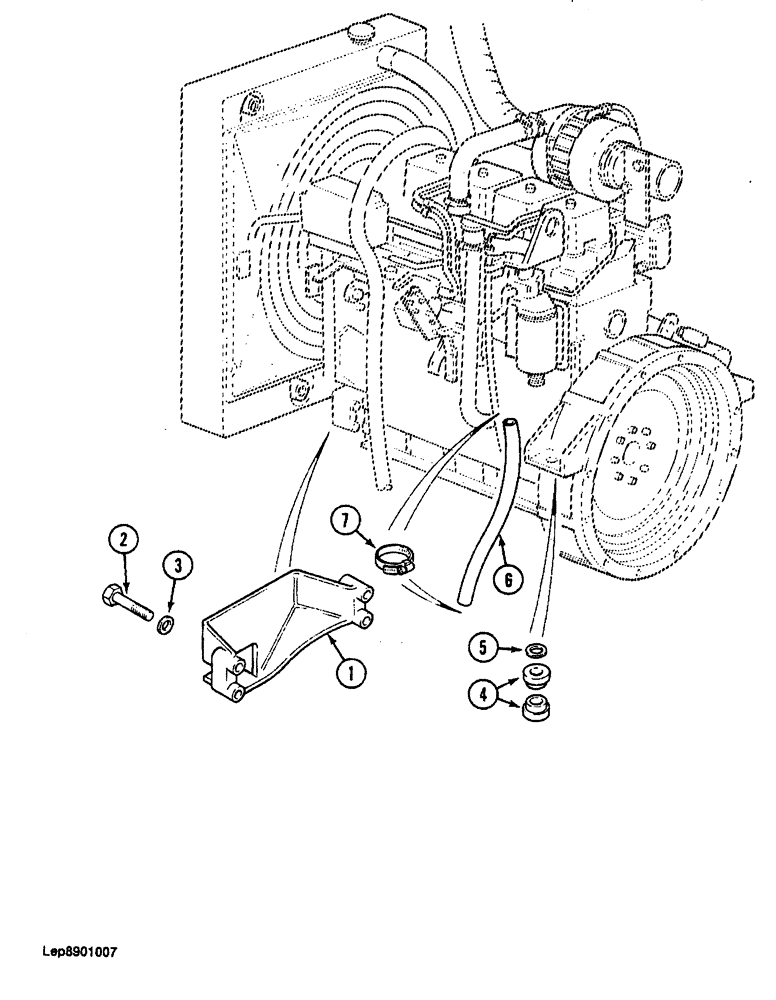

Схема запчастей Case 688 - (2-14) - ENGINE MOUNTING AND ADAPTING PARTS (02) - ENGINE
5
2
6
1
7
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P2346199

FOOT

SUPPORT - engine front

1шт.

2

P33844

SCREW

BOLT - hex, 12 mm x 90 mm

4шт.

3

P3528793

WASHER

SPACER - bolt, 8 mm thick

4шт.

4

R49921

RUBBER MOUNTING

INSULATOR - rubber, front and side engine mounting

6шт.

5

P2745406

WASHER

- special, rubber insulator mounting

3шт.

6

REF

INSTRUCTION

HOSE - 17-3/4" long, engine breather, cut from P31901

1шт.

7

P36998

COLLAR CLAMP

CLAMP - breather, Serial Range: hose-engine

2шт.
