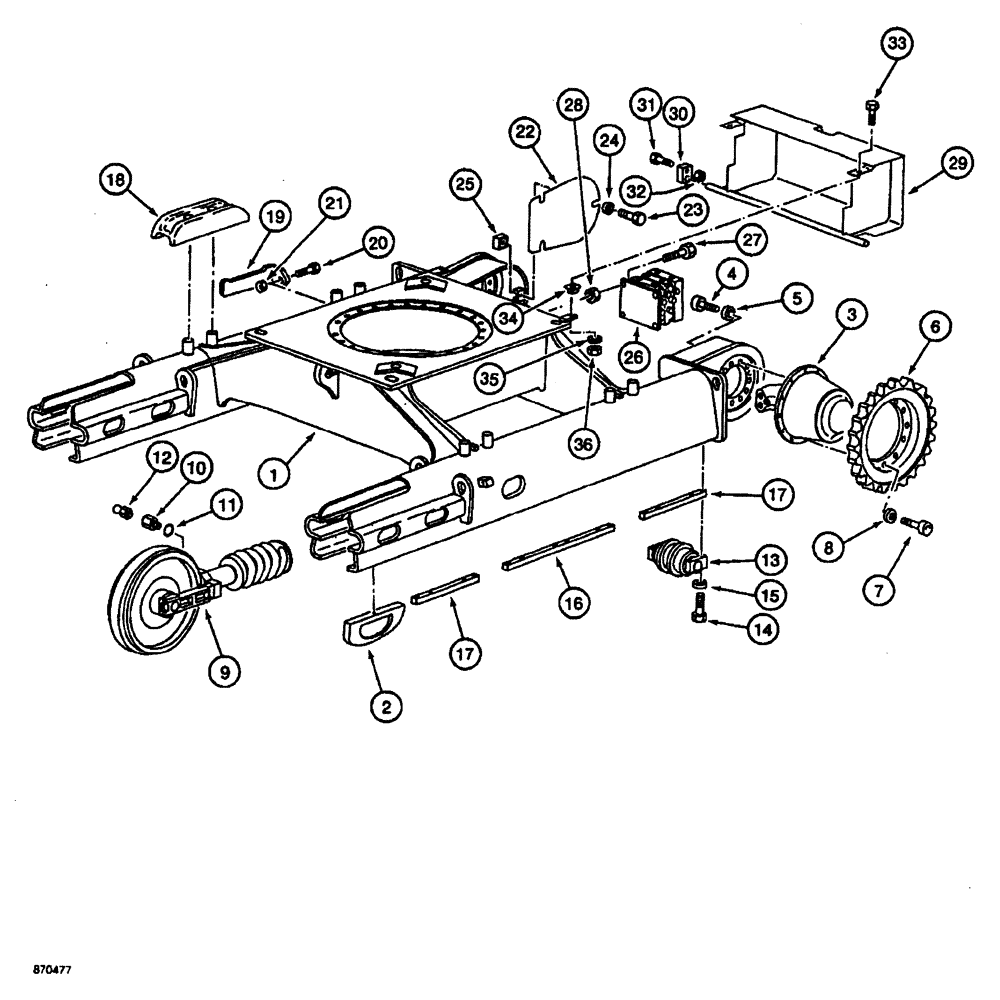

Запчасти Case 688 (5-02) - TRACK FRAME AND UNDERCARRIAGE (11) - TRACKS/STEERING

1

P154981

CHASSIS

TRACK FRAME AND UNDERCARRIAGE - excavator, Includes: Ref. 2

1шт.

2

P1304049

WEB

GUIDE - track, front of undercarriatge, welded on

4шт.

Ref #2 - Adopt P2646135 (Casted) or P7428231 (Welded) Track Guides

1шт.

3

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION AND DRIVE MOTOR - excavator, see Figure 6-2

2шт.

4

P732986

SCREW

BOLT - hex socket head, 20 mm x 75 mm, grade 10.9

20шт.

5

P4328747

WASHER

SPACER - bolt, 14 mm thick

20шт.

6

P3739381

DRIVE SPROCKET

SPROCKET - track drive

2шт.

7

P632962

SCREW

BOLT - hex socket head, 20 mm x 60 mm, grade 10.9

24шт.

8

P4328747

WASHER

SPACER - bolt, 14 mm thick

24шт.

9

REF

INSTRUCTION

TRACK IDLER ADJUSTMENT CYLINDER - undercarriage, see Figures, Serial Range: 5-6-5-10

2шт.

10

P2643387

ADAPTER

- grease fitting to track adjuster, Includes: Ref. 11 and 12

2шт.

11

P1230443

O-RING

SEAL - adapter (Replaces P1145268)

2шт.

Ref #11 - Sits in the recess of Adapter (Ref #10)

1шт.

12

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

13

REF

INSTRUCTION

TRACK-ROLLER - lower, see Figure 5-12 and 5-14

14шт.

14

P1133890

SCREW

BOLT - hex head, 16 mm x 110 mm, grade 10.9

56шт.

15

P4628731

WASHER

SPACER - bolt, 6 mm thick

56шт.

16

P4420350

PLATE,SMALL SQUARE

BAR - retainer, roller to frame, long

4шт.

17

P4420349

PLATE,SMALL SQUARE

BAR - retainer, roller to frame, short

8шт.

18

P1604007

WEAR PAD

GUIDE - upper track, cast type, if used

4шт.

18

P155621

WEAR PAD

GUIDE - upper track, fabricated type, if used

4шт.

19

P2326789

STEP

- operator assist

2шт.

20

P133835

SCREW

BOLT - hex head, 20 mm x 100 mm

2шт.

21

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

2шт.

22

P2722569

COWL

GUARD - drive motor, inner

2шт.

23

P732622

SCREW

BOLT - hex head, 10 mm x 50 mm (Replaces P3333033)

6шт.

A refers to pedal swing controls

1шт.

24

P3528795

WASHER

SPACER - bolt, 7 mm thick

6шт.

25

P2434525

NUT

- cage type, 10 mm

6шт.

26

REF

INSTRUCTION

VALVE ASSEMBLY - drive control, see Figures 7-14 and 7-16

1шт.

27

P33840

SCREW

BOLT - hex head, 12 mm x 30 mm

4шт.

28

P34596

LOCK NUT

NUT - hex, self-locking, 12 mm

4шт.

29

P154982

PROTECTOR

GUARD - drive control, valve

1шт.

30

P3923381

SUPPORT

- mounting, valve guard

1шт.

31

P1133818

SCREW

BOLT - hex head, 20 mm x 120 mm

1шт.

32

P134564

SAFETY NUT

NUT - hex, self-locking, 20 mm

1шт.

33

P933835

SCREW

BOLT - hex head, 10 mm x 70 mm

2шт.

34

P4327103

SPACER

- special, guard mounting

2шт.

35

P3528795

WASHER

SPACER - bolt

2шт.

36

P34598

SAFETY NUT

NUT -hex, self-locking

2шт.

34

P4327103

SPACER

- special, guard mounting

2шт.

35

P3528795

WASHER

SPACER - bolt

2шт.

36

P34598

SAFETY NUT

NUT - hex, self-locking

2шт.
