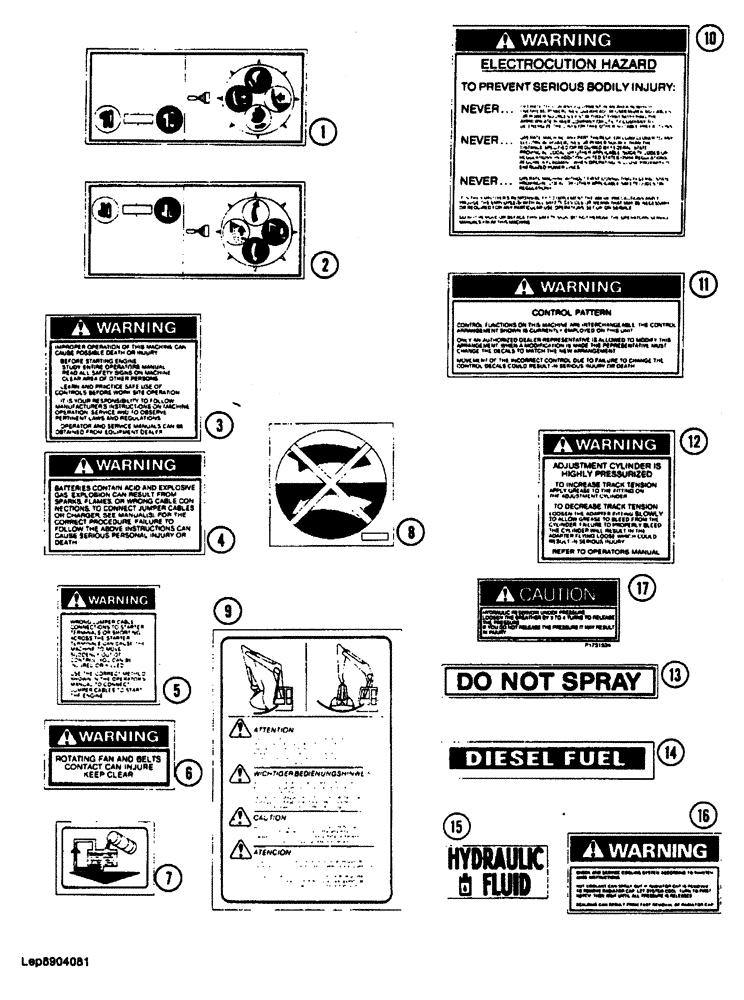

Запчасти Case 688 (9-110) - DECALS (09) - CHASSIS

1

S242817

DECAL

- Control pattern A, pedal swing controls, right-hand side, optional

1шт.

1

S242830

DECAL

- Control pattern C, John Deere controls, right-hand side, optional

1шт.

1

P7947567

DECAL

- Control pattern D, Case/Cat controls, right-hand side , standard

1шт.

2

S242818

DECAL

- Control pattern A, pedal swing controls, left-hand side, optional

1шт.

2

S242829

DECAL

- Control pattern C, John Deere controls, left-hand side, optional

1шт.

2

P7947568

DECAL

- Control pattern D, Case/Cat controls, left-hand side, standard

1шт.

3

P6147565

DECAL

- Warning, improper operation

1шт.

4

P251593

DECAL

- Warning, batteries

1шт.

5

P251592

DECAL

- Warning, jump starting engine

1шт.

6

P251594

DECAL

- Warning, engine fan

2шт.

7

P1451593

DECAL

- Hydraulic system (Replaces P7947530)

1шт.

8

P2247581

DECAL

- Turret lock location

1шт.

9

P1451586

DECAL

- Caution, tool interferece with cab (Replaces P351557)

1шт.

10

P6147566

DECAL

- Warning, electrocution hazard

1шт.

11

P6147567

DECAL

- Warning control pattern identification

1шт.

12

P251597

DECAL

- Warning, track adjustment cylinder

2шт.

13

P351543

DECAL

- Do not spray

1шт.

14

P251595

DECAL

- Diesel fuel

1шт.

15

P251591

DECAL

- Hydraulic fluid, fill location

1шт.

16

P1751549

DECAL

- Warning, radiator cap

1шт.

17

P1751534

DECAL

- Hydraulic reservoir under pressure

1шт.
