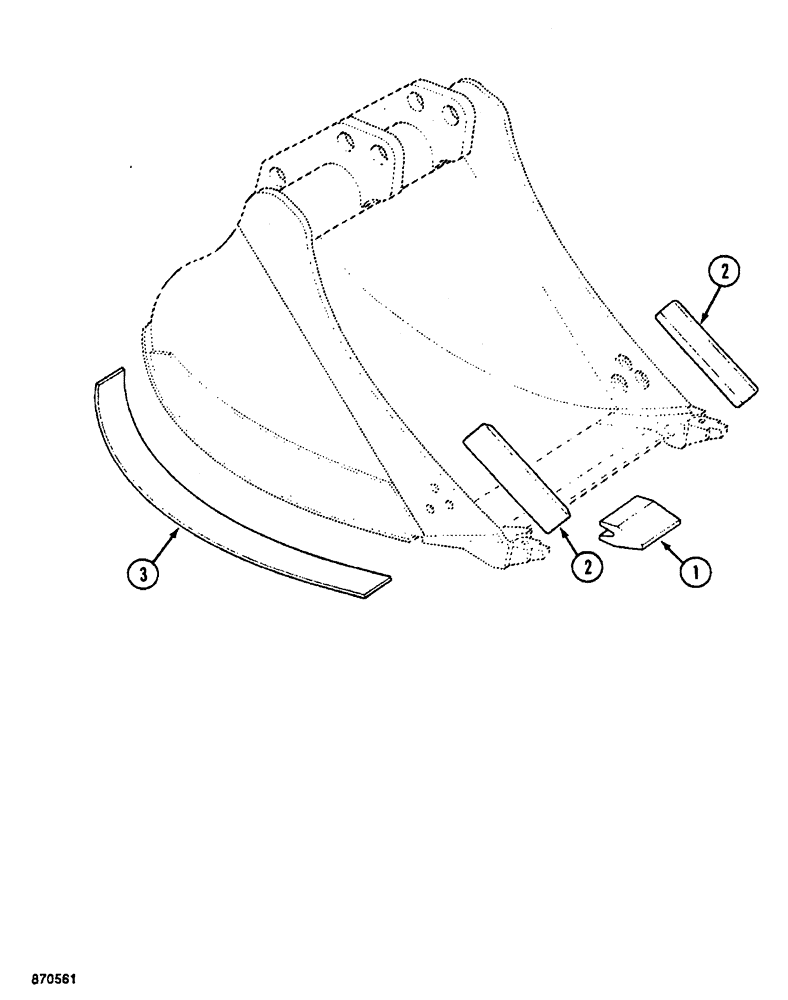

Запчасти Case 688 (9-102) - BUCKET REINFORCEMENT PARTS, BACKHOE BUCKET 23-5/8" WIDE (09) - CHASSIS

1

P2346175

PLATE

REINFORCEMENT - cutting edge

2шт.

2

P2346175

PLATE

REINFORCEMENT - side cutting edge

2шт.

3

P5526694

STIFFENER

REINFORCEMENT - bucket bottom

2шт.

1

P2346174

BLADE

REINFORCEMENT - cutting edge, backhoe bucket 29 1/2 inch wide

3шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 29 1/2 inch wide

2шт.

3

P5526694

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 29 1/2 inch wide

2шт.

1

P2346175

PLATE

REINFORCEMENT - cutting edge, backhoe bucket 33 1/2 inch wide

3шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 33 1/2 inch wide

2шт.

3

P5526694

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 33 1/2 inch wide

2шт.

1

P2346176

PLATE

REINFORCEMENT - cutting edge, backhoe bucket 37 1/2 inch wide

3шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 37 1/2 inch wide

2шт.

3

P5526694

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 37 1/2 inch wide

3шт.

1

P2346174

BLADE

REINFORCEMENT - cutting edge, backhoe bucket 41 5/16 inch wide

4шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 41 5/16 inch wide

2шт.

3

P5526694

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 41 5/16 inch wide

3шт.

1

P2346175

PLATE

REINFORCEMENT - cutting edge, backhoe bucket 47 1/4 inch wide

4шт.

2

P2346193

PLATE

REINFORCEMENT - side cutting edge, backhoe bucket 47 1/4 inch wide

2шт.

3

P5526694

STIFFENER

REINFORCEMENT - bucket bottom, backhoe bucket 47 1/4 inch wide

4шт.
