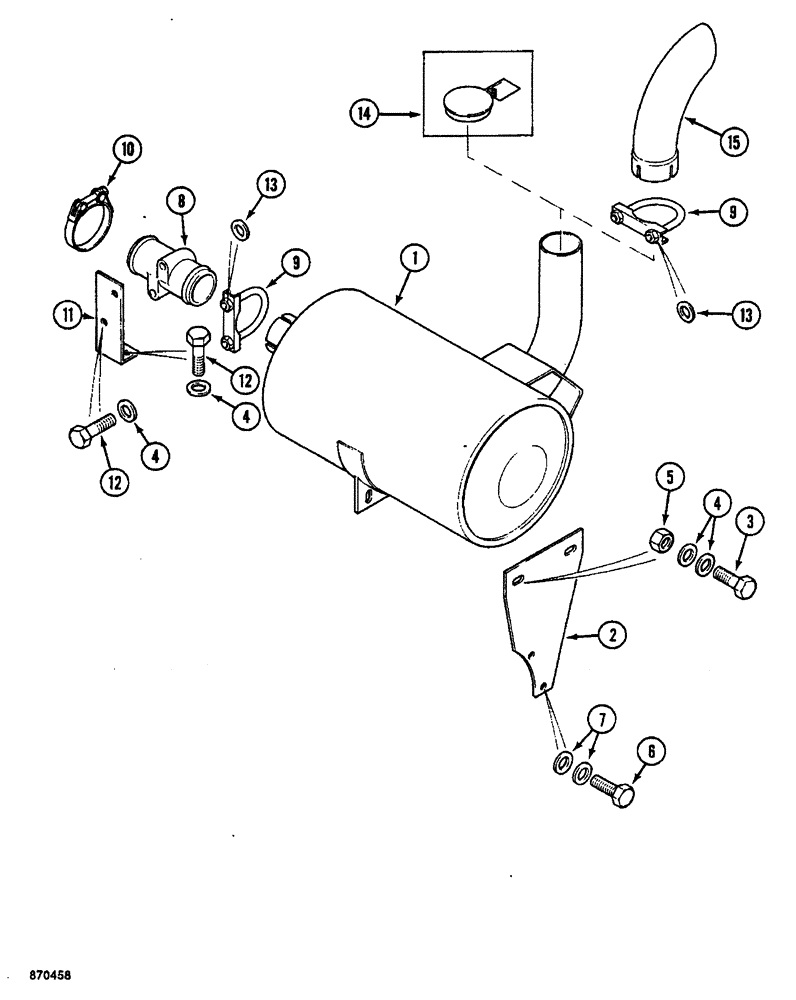

Запчасти Case 688 (2-12) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

P4241485

MUFFLER

- engine exhaust (Replaces P3441482)

1шт.

2

P1323616

LARGE PLATE

BRACKET - mounting, Serial Range: muffler-engine

1шт.

3

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

4шт.

4

P3528795

WASHER

SPACER - bolt, 7 mm thick

8шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

P833802

SCREW

BOLT - hex, 10 mm x 50 mm

2шт.

7

P4328796

WASHER

SPACER - bolt, 7 mm thick

4шт.

8

P7946209

ADAPTER

-, Serial Range: muffler-turbocharger

1шт.

9

P3036956

CLAMP

-, Serial Range: muffler-pipe

1шт.

10

P3036950

CLAMP

-, Serial Range: adapter-turbocharger

1шт.

11

P5125614

PLATE

BRACKET - mounting, Serial Range: adapter-engine

1шт.

12

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

4шт.

13

P35002

WASHER

SPACER - clamp, M8N (Replaces P3528795)

4шт.

14

P2340486

COVER

CAP - muffler, Serial Range: 74123-74349

1шт.

15

P3950122

TUBE

PIPE - muffler extension, Serial Range: 74350-74485

1шт.

15

P3950122

TUBE

PIPE - muffler extension, Start Serial: 11501

1шт.
