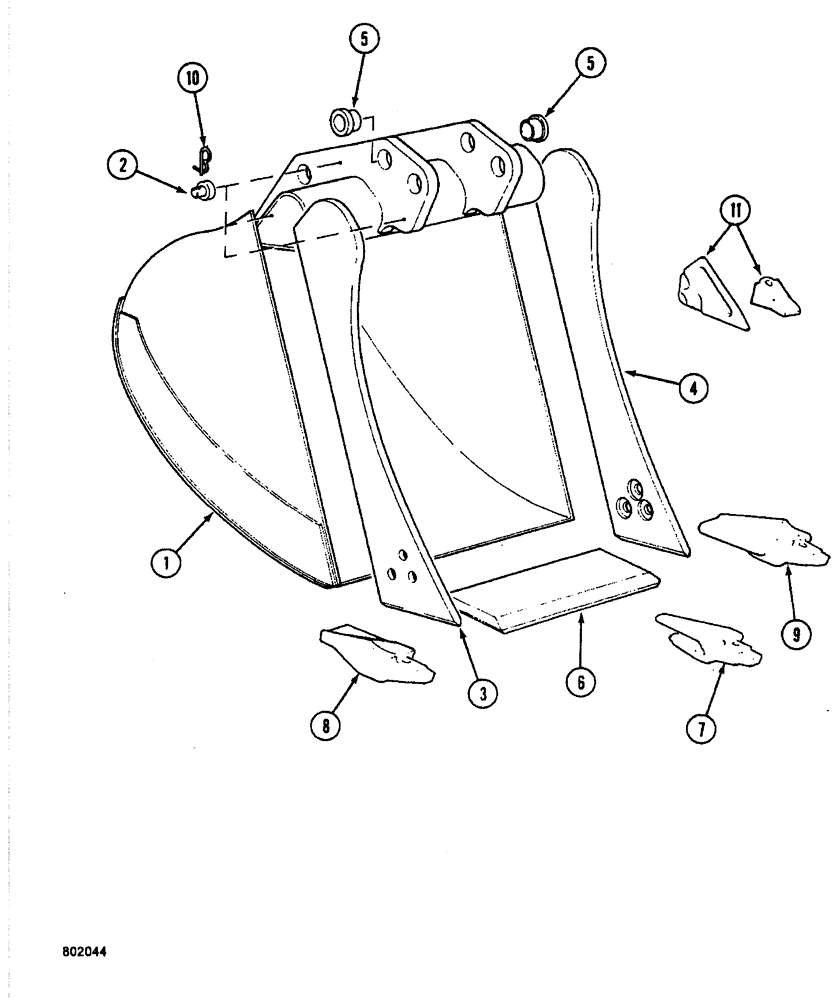

Запчасти Case 688 (9-096) - BACKHOE BUCKET, BACKHOE BUCKET 23-5/8" WIDE (09) - CHASSIS

P2754948

BACKHOE BUCKET ASSEMBLY - excavator, 23-5/8" wide, Includes: Ref. 1 - 10

1шт.

AVAILABLE IN WHOLEGOODS DEPARTMENT

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin

3шт.

3

P4424280

STIFFENER

CUTTING EDGE - side left-hand

1шт.

4

P4424279

STIFFENER

CUTTING EDGE - side right-hand

1шт.

5

P5428744

BUSHING

- bucket pin, at arm and, Serial Range: link-bucket

6шт.

P1504041

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket

1шт.

7

P604276

SUPPORT

SHANK - thoot, center

1шт.

8

P1504047

SHANK, BUCKET TOOTH

SHANK - thoot, left-hand

1шт.

9

P1504048

SHANK, BUCKET TOOTH

SHANK - thoot, right-hand

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

3шт.

11

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, see Figure 9-104

1шт.

P2754949

BACKHOE BUCKET ASSEMBLY - excavator, 29-1/2" wide, Includes: Ref. 1 - 10

1шт.

AVAILABLE IN WHOLEGOODS DEPARTMENT

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator, 29 1/2 inch wide

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin, backhoe bucket, 29 1/2 inch wide

3шт.

3

P4424280

STIFFENER

CUTTING EDGE - side left-hand, backhoe bucket, 29 1/2 inch wide

1шт.

4

P4424279

STIFFENER

CUTTING EDGE - side right-hand, backhoe bucket, 29 1/2 inch wide

1шт.

5

P5428744

BUSHING

- bucket pin, at arm and link to bucket, backhoe, 29 1/2 inch wide

6шт.

P1504042

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, backhoe, 29 1/2 inch wide, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket, backhoe, 29 1/2 inch wide

1шт.

7

P604276

SUPPORT

SHANK - thoot, center, backhoe bucket, 29 1/2 inch wide

1шт.

8

P1504047

SHANK, BUCKET TOOTH

SHANK - thoot, left-hand, backhoe bucket, 29 1/2 inch wide

1шт.

9

P1504048

SHANK, BUCKET TOOTH

SHANK - thoot, right-hand, backhoe bucket, 29 1/2 inch wide

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin, backhoe bucket, 29 1/2 inch wide

3шт.

11

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, see Figure 9-104, backhoe bucket, 29 1/2 inch wide

1шт.
