(9-094) - BACKHOE BUCKET, BACKHOE BUCKET 37-1/2" WIDE

Запчасти Case 688 (9-094) - BACKHOE BUCKET, BACKHOE BUCKET 37-1/2" WIDE (09) - CHASSIS

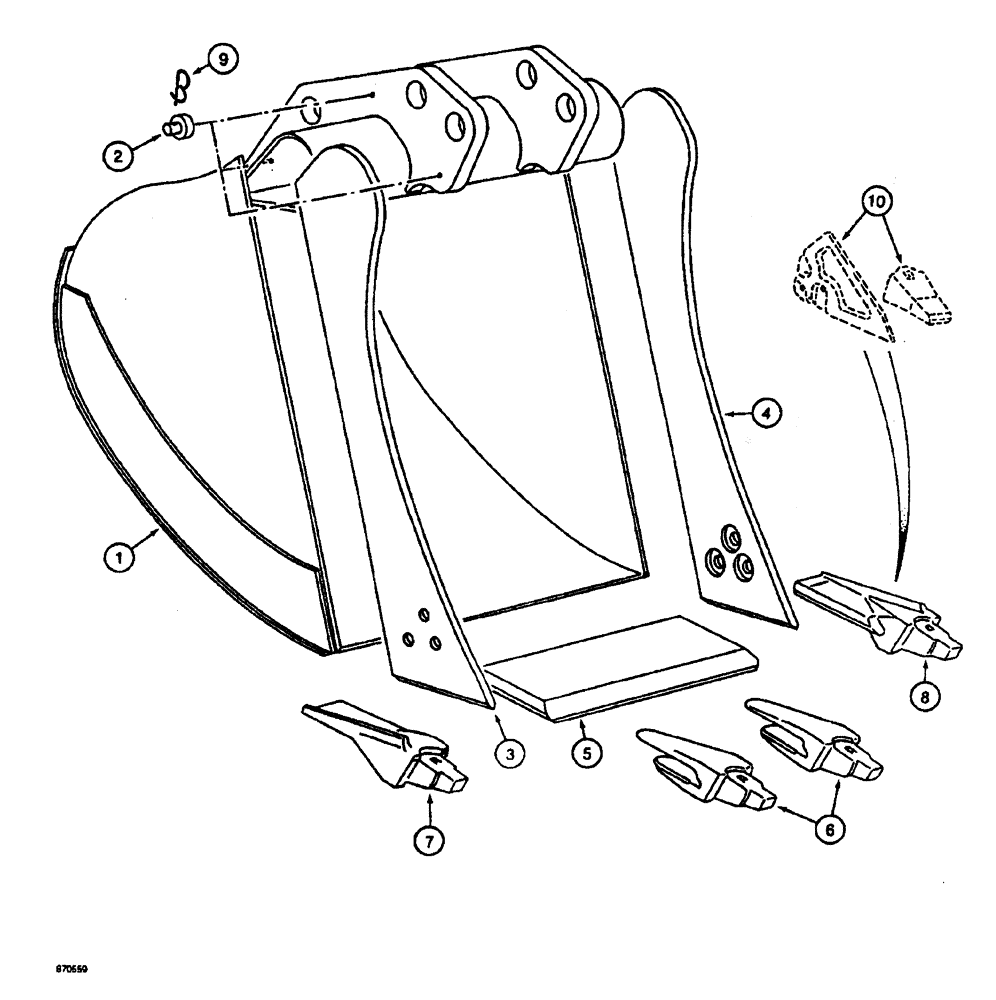

Схема запчастей Case 688 - (9-094) - BACKHOE BUCKET, BACKHOE BUCKET 37-1/2" WIDE (09) - CHASSIS
2
10
7
6
8
5
9
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P754964

BACKHOE BUCKET ASSEMBLY - excavator, 37- 1/2" wide, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - excavator

1шт.

2

P50053

SHAFT LOCK

PIN - lock, bucket pin

3шт.

3

P4424280

STIFFENER

CUTTING EDGE - side left-hand

1шт.

4

P4424279

STIFFENER

CUTTING EDGE - side right-hand

1шт.

P1504044

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket

1шт.

6

P604276

SUPPORT

SHANK - thoot, center

3шт.

7

P1504047

SHANK, BUCKET TOOTH

SHANK - thoot, left-hand

1шт.

8

P1504048

SHANK, BUCKET TOOTH

SHANK - thoot, right- hand

1шт.

9

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

3шт.

10

REF

INSTRUCTION

TEETH AND SIDE CUTTING EDGES - bucket, see Figure 9-104

1шт.
