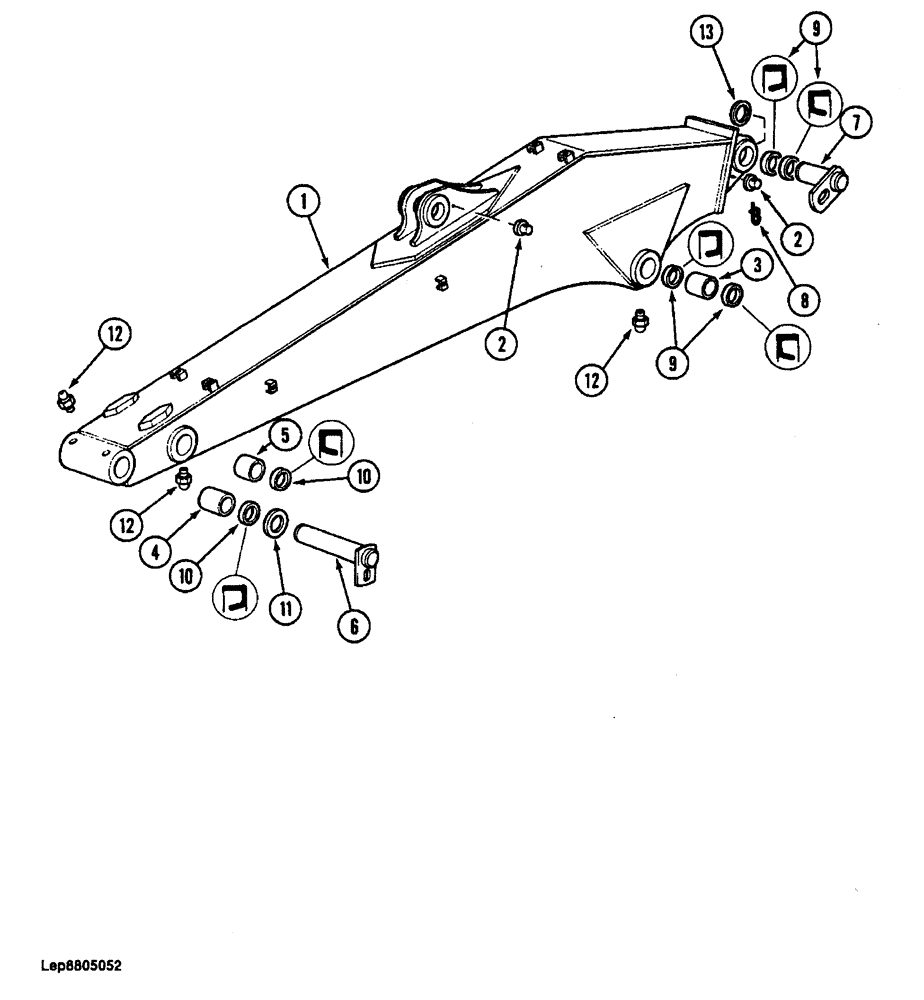

Запчасти Case 688 (9-088) - ARM AND MOUNTING PINS, WITH 6 FOOT 10-3/4 INCH ARM (09) - CHASSIS

P754923

DIPPER

ARM ASSEMBLY - excavator, 6 foot 10-3/4" long, Includes: Ref. 1 - 5

1шт.

AVAILABLE IN WHOLEGOODS DEPARTMENT

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - excavator

1шт.

2

P1127863

SHAFT LOCK

PIN - lock, cylinder pin, Serial Range: welded-arm

2шт.

3

P1528673

BUSHING

- pin, Serial Range: arm-boom

2шт.

4

P4628706

BUSHING

- pin, Serial Range: arm-bucket

2шт.

5

P5428747

BUSHING

- pin, Serial Range: link-arm

2шт.

6

P130918

HEADED PIN

PIN, HEADED - mounting, Serial Range: arm-bucket

1шт.

7

P50388

HEADED PIN

PIN - mounting, arm to arm cylinder

1шт.

8

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

9

P151309

SEAL

- grease, bushing

6шт.

10

P151313

SEAL

- grease, bushing

4шт.

11

P3145326

WASHER

- special, arm to bucket pin

2шт.

12

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

6шт.

13

P145347

WASHER

- special, arm to cylinder pin

1шт.
