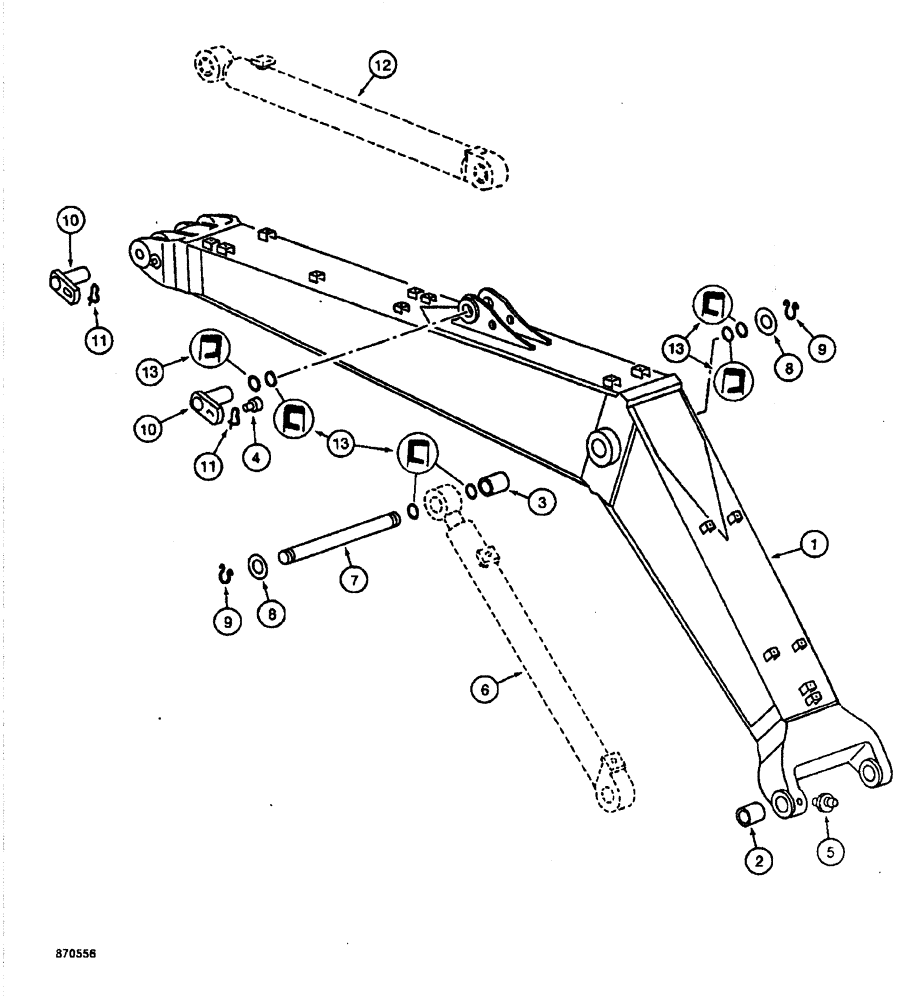

Запчасти Case 688 (9-082) - BOOM AND CYLINDER MOUNTING PINS (09) - CHASSIS

P754904

BOOM

ASSEMBLY - excavator, Includes: Ref. 1 - 3

1шт.

Available from wholegoods department

1шт.

1

NSS

NOT SOLD SEPARAT

BOOM - excavator

1шт.

2

P1528673

BUSHING

- boom, at turntable

2шт.

3

P4628776

BUSHING

- boom, at upper cylinder mounting

2шт.

4

P1127863

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-boom

1шт.

5

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

6

REF

INSTRUCTION

CYLINDER ASSEMLBY - boom, see Figure 8-164 - 8-168

2шт.

7

P5327866

PIN

- boom, Serial Range: cylinders-boom

1шт.

8

P45443

WASHER

- special, boom cylinder pin

2шт.

9

P36339

RING, SNAP

RETAINER RING - pin

2шт.

10

P50388

HEADED PIN

PIN - mounting, arm and arm, Serial Range: cylinder-boom

3шт.

11

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

3шт.

12

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, see Figure 8-178 & 8-180

1шт.

13

P151309

SEAL

- grease, bushing

6шт.
