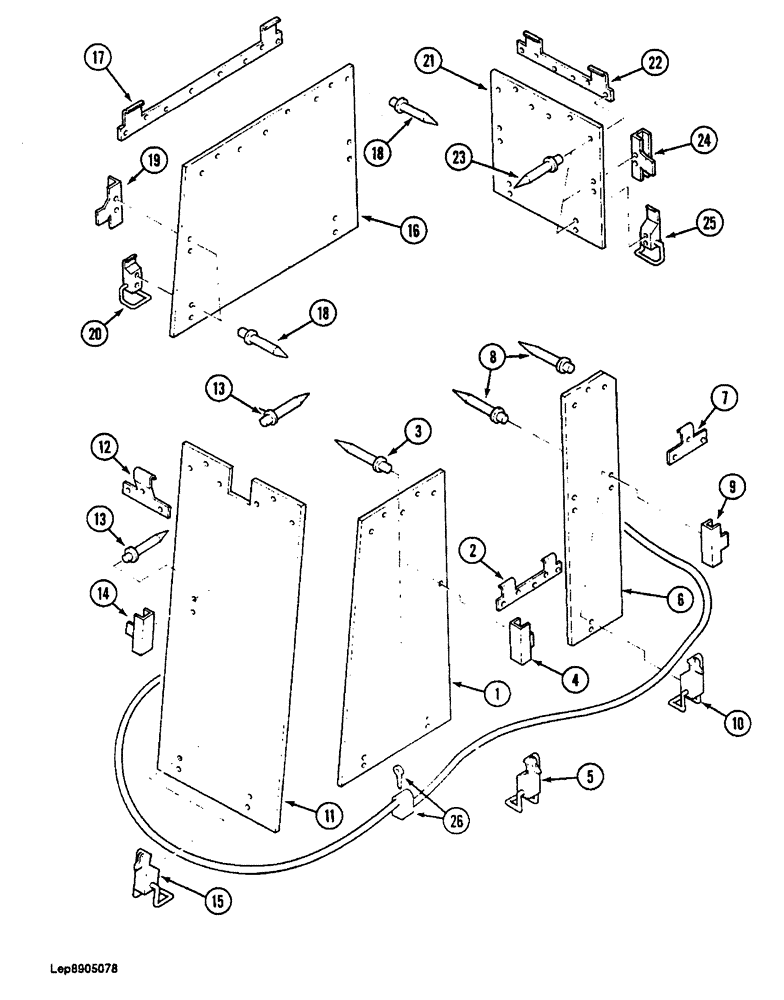

Запчасти Case 688 (9-080) - CAB PROTECTION (09) - CHASSIS

1

P2047019

PROTECTOR

PANEL ASSEMBLY - glass, cab door, Includes: Ref. 2 - 5

1шт.

2

P3226115

SWIVEL HOOK

BRACKET - door panel

1шт.

3

P35418

RIVET

POP RIVET - 4.8 mm x 17 mm

13шт.

4

P2425963

HANDLE

- panel, cab door

2шт.

5

P3036975

CLAMP

CATCH - spring, panel

2шт.

6

P2047017

PROTECTOR

PANEL ASSEMBLY - glass, cab left-hand side, Includes: Ref. 7 - 10

1шт.

7

P3226118

SWIVEL HOOK

BRACKET - panel, left-hand side

1шт.

8

P35418

RIVET

POP RIVET - 4.8 mm x 17 mm

9шт.

9

P3326314

HANDLE

- panel, cab left-hand side

2шт.

10

P3036975

CLAMP

CATCH - spring, panel

1шт.

11

P2047018

PROTECTOR

PANEL ASSEMBLY - glass, cab windscreen, Includes: Ref. 12 - 15

1шт.

12

P3326313

SWIVEL HOOK

BRACKET - panel, windscreen

2шт.

13

P35418

RIVET

POP RIVET - 4.8 mm x 17 mm 14

14шт.

14

P2425963

HANDLE

- panel, cab windscreen

2шт.

15

P3036975

CLAMP

CATCH - sprint, panel

2шт.

16

P2047016

PROTECTOR

PANEL ASSEMBLY - glass, window right-hand side, Includes: Ref. 17 - 20

1шт.

17

P3226116

SWIVEL HOOK

BRACKET - panel, window right-hand side

1шт.

18

P35418

RIVET

POP RIVET - 4.8 mm x 17 mm

16шт.

19

P3326314

HANDLE

- panel, window right-hand side

2шт.

20

P3036975

CLAMP

CATCH - spring, panel

2шт.

21

P2047015

PROTECTOR

PANEL ASSEMBLY - glass, cab rear, Includes: Ref. 22 - 25

1шт.

22

P3226117

SWIVEL HOOK

BRACKET - panel, cab rear

1шт.

23

P35418

RIVET

POP RIVET - 4.8 mm x 17 mm

14шт.

24

P3326314

HANDLE

- panel, cab rear

2шт.

25

P3036975

CLAMP

CATCH - sprint, panel

2шт.

26

P1352022

PADLOCK

CABLE - panel locking

1шт.
