(9-072) - CAB WINDSHIELD, P.I.N. FROM 74123 TO 74485, 11501 TO XXXXX

Запчасти Case 688 (9-072) - CAB WINDSHIELD, P.I.N. FROM 74123 TO 74485, 11501 TO XXXXX (09) - CHASSIS

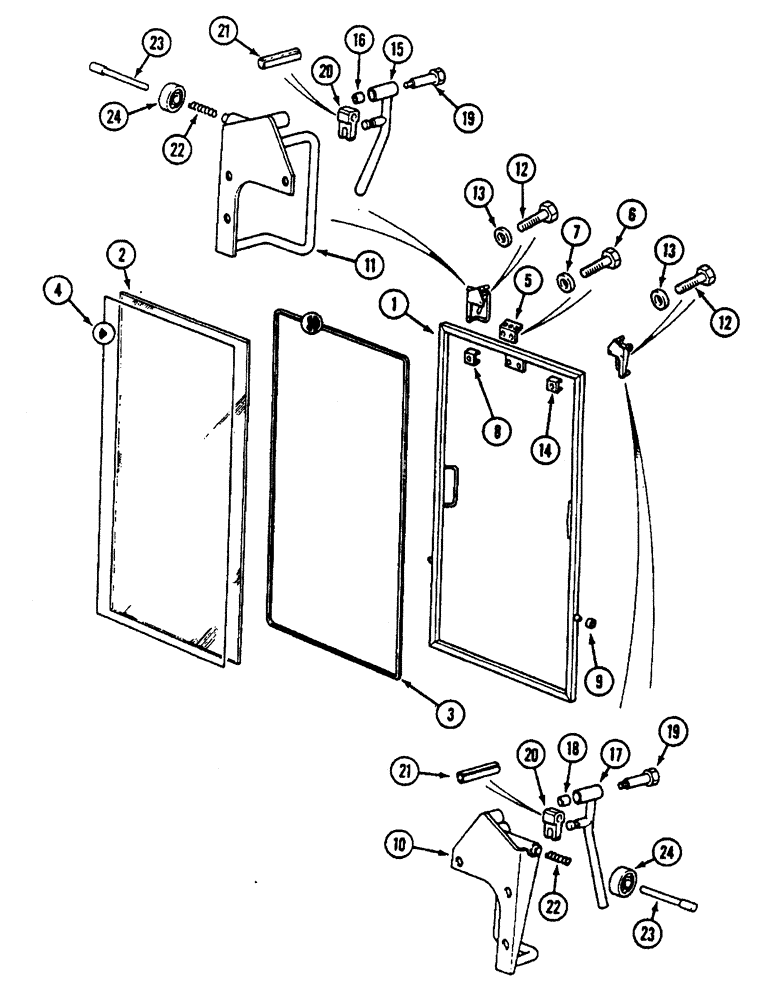

Схема запчастей Case 688 - (9-072) - CAB WINDSHIELD, P.I.N. FROM 74123 TO 74485, 11501 TO XXXXX (09) - CHASSIS
13
6
21
24
20
19
22
7
24
10
5
14
17
23
11
4
2
12
20
1
3
18
9
21
8
19
13
23
16
12
22
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P1347086

WINDSHIELD

ASSEMBLY - cab, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - windshield

1шт.

2

P1347088

GLASS

- windshield

1шт.

3

P8046008

SEAL

RETAINER -, Serial Range: glass-frame

1шт.

4

REF

INSTRUCTION

SEAL - windshield glass, 15 ft 1-1/4 inch long, cut from P346008

1шт.

5

P2826130

SUPPORT

BRACKET - wiper terminal switch, see Figure 4-24 for switches and wiring

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Bracket to frame

2шт.

7

P745438

WASHER

- flat, 8 mm

2шт.

8

P234587

NUT

RETAINER - bolt, clip type

2шт.

9

P139633

BEARING

BALL BEARING - windshield track, at frame

2шт.

10

P852079

CYLINDER END CAP

BRACKET - windshield release, left-hand

1шт.

11

P852078

SUPPORT

BRACKET - windshield release, right-hand

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Bracket to frame

6шт.

13

P745438

WASHER

- flat, 8 mm

6шт.

14

P234587

NUT

RETAINER - bolt, clip type

6шт.

P4842701

LEVER

HANDLE ASSEMBLY - windshield release, right-hand, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

HANDLE - windshield release, right-hand

1шт.

16

P29299

SELF LUB RING

BUSHING - release handle

2шт.

P4042799

LEVER

HANDLE ASSEMBLY - windshield release, left-hand, Includes: Ref. 17 - 18

1шт.

17

NSS

NOT SOLD SEPARAT

HANDLE - windshield release, left-hand

1шт.

18

P29299

SELF LUB RING

BUSHING - release handle

2шт.

19

P1827967

PIN

BOLT - shoulder, Serial Range: handle-bracket

2шт.

20

P5846251

CLEVIS

LEVER - lock plunger, replaced by P7646275, when replacing lever also order P5327897 plunger, Ref. number 23

2шт.

21

P35720

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: lever-plunger

2шт.

22

P738143

COMPRESSION SPRING

SPRING - plunger return

2шт.

23

P1127836

LARGE PIN

PLUNGER - windshield release, replaced by P5327897, when replacing plunger also order P7646275 lever, Ref number 20

2шт.

24

P139633

BEARING

BALL BEARING - windshield track, at release bracket

2шт.
