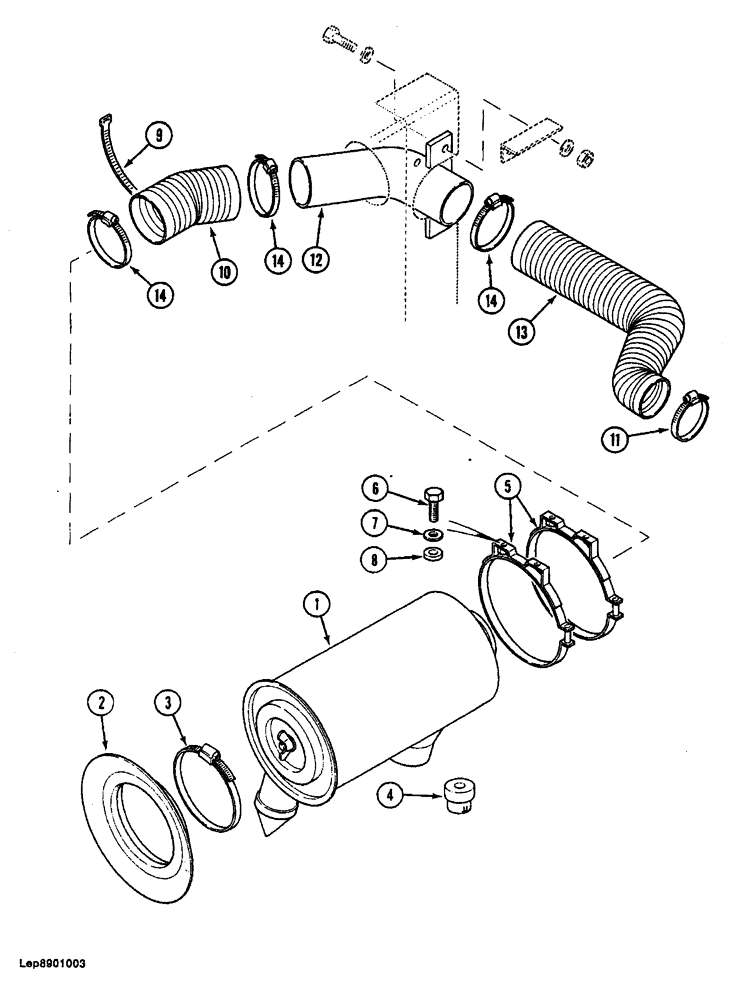

Запчасти Case 688 (2-08) - AIR INTAKE PARTS (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY - engine, see Figure 2-10

1шт.

2

P8046050

SEAL

- rubber, air, Serial Range: cleaner-compartment

1шт.

3

P1236992

COLLAR CLAMP

CLAMP - air, Serial Range: cleaner-compartment

1шт.

4

P2141684

INDICATOR

SENDER - air restriction indicator

1шт.

5

P3036927

CLAMP

- air, Serial Range: cleaner-compartment

2шт.

6

P133884

SCREW

BOLT - hex, 8 mm x 35 mm

4шт.

7

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

8

P4328729

WASHER

SPACER - clamp to compartment, 16 mm thick

4шт.

9

P136922

CLAMP

TIE STRAP - hose, 13-3/4 inch long

2шт.

10

P5931986

LARGE HOSE

HOSE - air intake, from air cleaner

1шт.

11

P1236903

CLAMP

- air intake hose

1шт.

12

P3450113

MANIFOLD

TUBE - adapter, air intake hose

1шт.

13

P6631981

LARGE HOSE

HOSE - air, Serial Range: intake-turbocharger

1шт.

14

P136901

CLAMP

- air intake hose, at adapter tube

3шт.
