(9-056) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. FROM 74123 TO 74485

Запчасти Case 688 (9-056) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. FROM 74123 TO 74485 (09) - CHASSIS

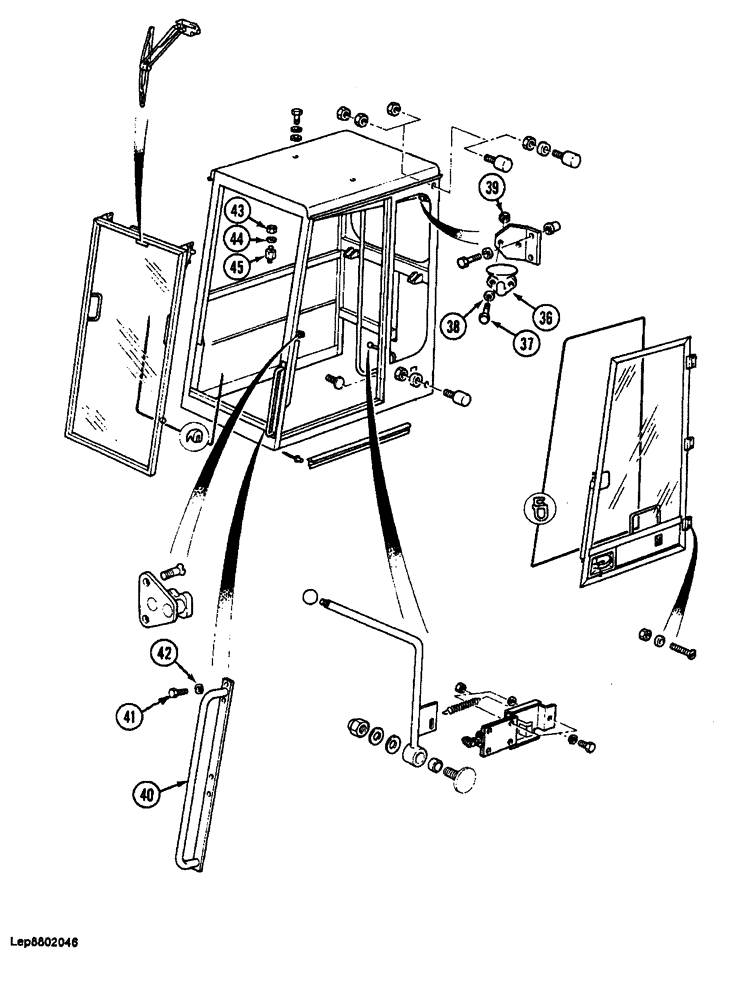

Схема запчастей Case 688 - (9-056) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. FROM 74123 TO 74485 (09) - CHASSIS
37
36
39
40
43
41
42
45
38
44
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

36

P4151

COAT HOOK

HOOK -coat

1шт.

37

P933825

SCREW

BOLT -, Serial Range: hook-bracket

2шт.

38

P34607

WASHER

- lock

1шт.

39

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

2шт.

40

P4247989

HANDLE

- cab access

1шт.

41

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

4шт.

42

P3528799

WASHER

- flat, 4 mm thick

4шт.

43

P34108

NUT

- hex, 5 mm

2шт.

44

P4328718

WASHER

- stop, 3 mm thick

2шт.

45

P4241455

STOP

- windshield, rubber

2шт.
