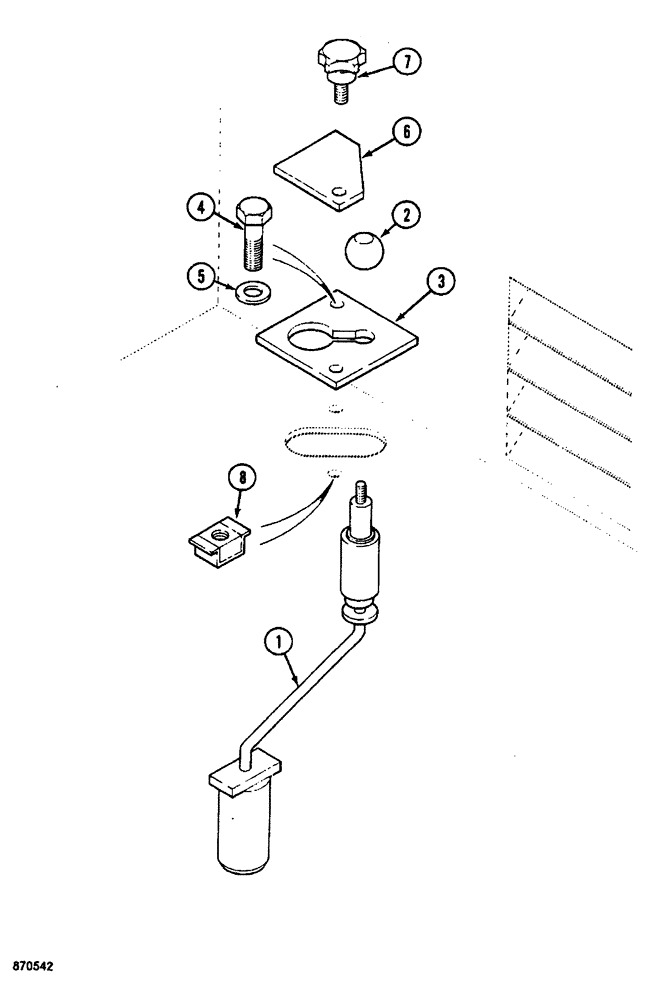

Запчасти Case 688 (9-048) - TURNTABLE LOCK (09) - CHASSIS

1

P5242722

LARGE PIN

HANDLE AND PIN ASSEMBLY - turntable lock

1шт.

2

P29906

BALL KNOB

KNOB - handle

1шт.

3

P4623476

SIEVE

PLATE - mounting, turntable lock

1шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

1шт.

5

P3528799

WASHER

SPACER - bolt, 4 mm thick

1шт.

6

P1623929

STOP

PLATE - lock, handle

1шт.

7

P2741609

BUTTON

LOCK - plate

1шт.

8

P1634573

NUT

- square type, 6 mm

2шт.
