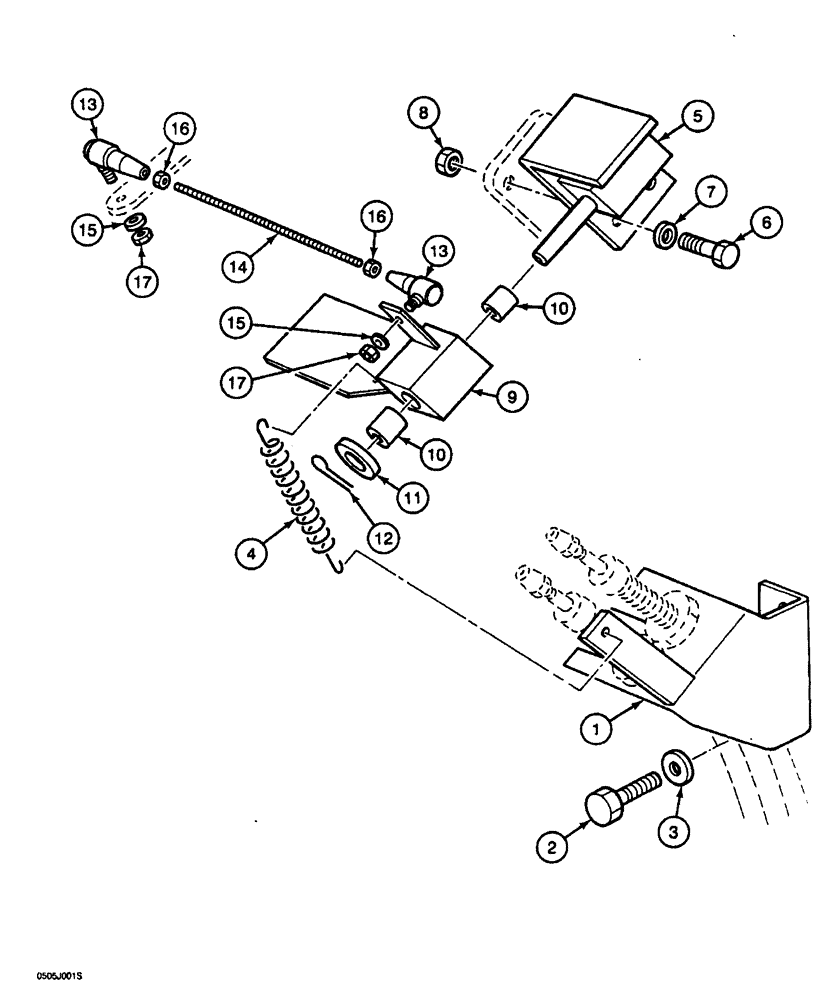

Запчасти Case 688 (9-046) - ENGINE THROTTLE CONTROLS (09) - CHASSIS

1

P4427108

STOP LOCK

BRACKET - throttle cable, at engine

1шт.

2

P733029

SCREW

BOLT - hex head, 8 mm x 30 mm

2шт.

3

P3528794

WASHER

SPACER - bolt, 6 mm thick

2шт.

4

P38002

COIL SPRING

SPRING - throttle return

1шт.

5

P4427107

SUPPORT

BRACKET - mounting, bellcrank

1шт.

6

P33808

SCREW

BOLT - hex head, 6 mm x 30 mm

2шт.

7

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

8

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

2шт.

9

P1352023

CRANK LEVER

BELLCRANK - throttle control

1шт.

10

P29299

SELF LUB RING

BUSHING - bellcrank

2шт.

11

P34611

WASHER

- flat, 10 mm

1шт.

12

P35510

SPLIT PIN

COTTER PIN - 2 mm x 20 mm long

1шт.

13

P40093

BALL JOINT

- throttle control

2шт.

14

P2527768

STEM

ROD - throttle control

1шт.

15

P34605

WASHER

- flat, 5 mm

2шт.

16

P34108

NUT

- hex, 5 mm

2шт.

17

P834574

SAFETY NUT

NUT - hex, self locking, 5 mm

2шт.
