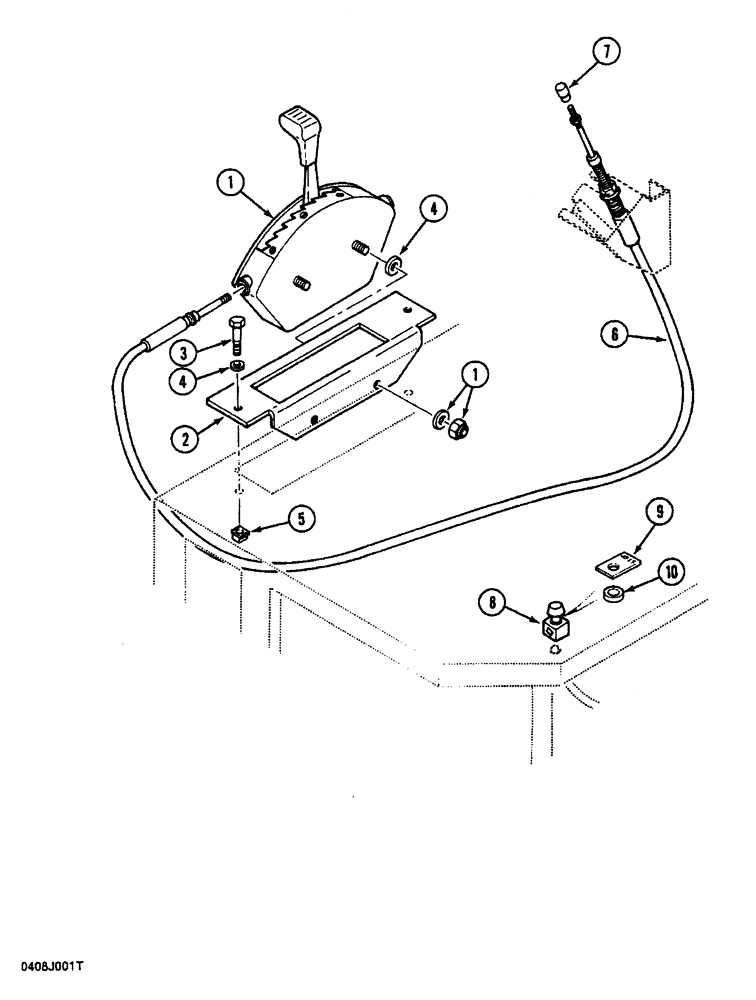

Запчасти Case 688 (9-044) - ENGINE THROTTLE / SHUTDOWN (09) - CHASSIS

1

P5242715

CASE

CONTROL ASSEMBLY - engine throttle, includes mounting hardware

1шт.

2

P4625692

SUPPORT

BRACKET - mounting, control assembly

1шт.

3

P32621

SCREW

BOLT - hex head, 6 mm x 16 mm

2шт.

4

P3528799

WASHER

SPACER - bolt, 4 mm thick

4шт.

5

P1634573

NUT

- square, cage type

2шт.

6

P4831322

CABLE

ASSEMBLY - engine throttle

1шт.

7

P1329948

TAPPET

RETAINER - cable throttle arm

1шт.

8

P2141693

SWITCH

- emergency shutoff

1шт.

9

P1251565

DECAL

- switch, emergency shutoff

1шт.

10

P3428501

WASHER

SPACER - switch

1шт.
