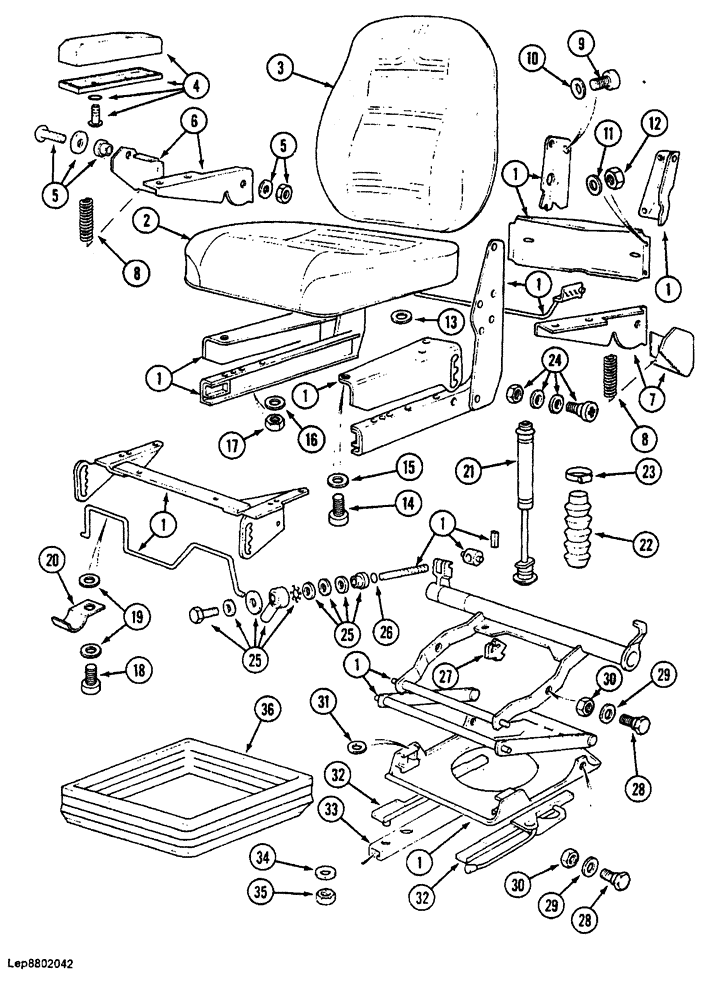

Запчасти Case 688 (9-038) - SEAT, IF USED (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
P1347047
SEAT
ASSEMBLY - operator's (Order P2047055) (Order P2047055) (See Figure 9-42), Includes: Ref. 1 - 3
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME ASSEMBLY - seat
1шт.
2
P1347059
CUSHION
- seat bottom
1шт.
3
P1347058
BACKREST
CUSHION - seat back
1шт.
P1347080
ARMREST
ASSEMBLY - seat, right-hand, includes Refs. 6 & 8
1шт.
P1347079
ARMREST
ASSEMBLY - seat, left-hand, includes Refs. 7 & 8
1шт.
4
P1347060
SET
ARMREST - seat, spare parts kit, includes two bases and two mounting hardwares
1шт.
5
P1347061
SET OF PARTS
KIT - armrest pivot rachet, kit for right and left handside armrests, Includes: Ref. 6 - 8
1шт.
6
NSS
NOT SOLD SEPARAT
BRACKET AND RACHET - armrest, right- hand
1шт.
7
NSS
NOT SOLD SEPARAT
BRACKET AND RACHET - armrest, left-hand
1шт.
8
P38288
SPRING
- armrest
1шт.
9
P1232917
SCREW
BOLT - seat back
4шт.
10
P34609
WASHER
- seat bolt
4шт.
11
P34609
WASHER
- stud
4шт.
12
P1334581
NUT
- stud
4шт.
13
P35001
WASHER
- base
4шт.
14
P1232916
SCREW
BOLT -, Serial Range: frame-cushion
4шт.
15
P35001
WASHER
- cushion mounting bolt
4шт.
16
P34609
WASHER
- seat frame stud
4шт.
17
P34201
NUT
- seat frame stud
4шт.
18
P1232916
SCREW
BOLT -, Serial Range: frame-cushion
2шт.
19
P35001
WASHER
- clamp bolt
4шт.
20
P2726674
SUPPORT
CLAMP - rod
2шт.
21
P1343227
SHOCK ABSORBER
- seat
1шт.
22
P1340448
BELLOWS
BOOT - shock absorber
1шт.
23
P36998
COLLAR CLAMP
CLAMP - boot
1шт.
24
P1047064
BOLT
KIT - shock absorber hardware
1шт.
25
P1047062
PAWL
ASSEMBLY - seat
1шт.
26
P336318
RING, SNAP
RING - retaining
1шт.
27
P641436
STOP
- seat
2шт.
28
P1533038
SCREW
BOLT - special
4шт.
29
P35004
WASHER
- bolt
4шт.
30
P34598
SAFETY NUT
NUT - hex, mounting bolt
4шт.
31
P34609
WASHER
- lower plate
4шт.
32
P1047063
SET
TRACK SET - right-hand and left-hand
1шт.
33
P348301
BLOCK
RAIL - lower
2шт.
34
P35002
WASHER
- lock
4шт.
35
P134596
SAFETY NUT
NUT - hex
4шт.
36
P2340465
BELLOWS
COVER - suspension mechanism
1шт.
Выбрано товаров: 39
