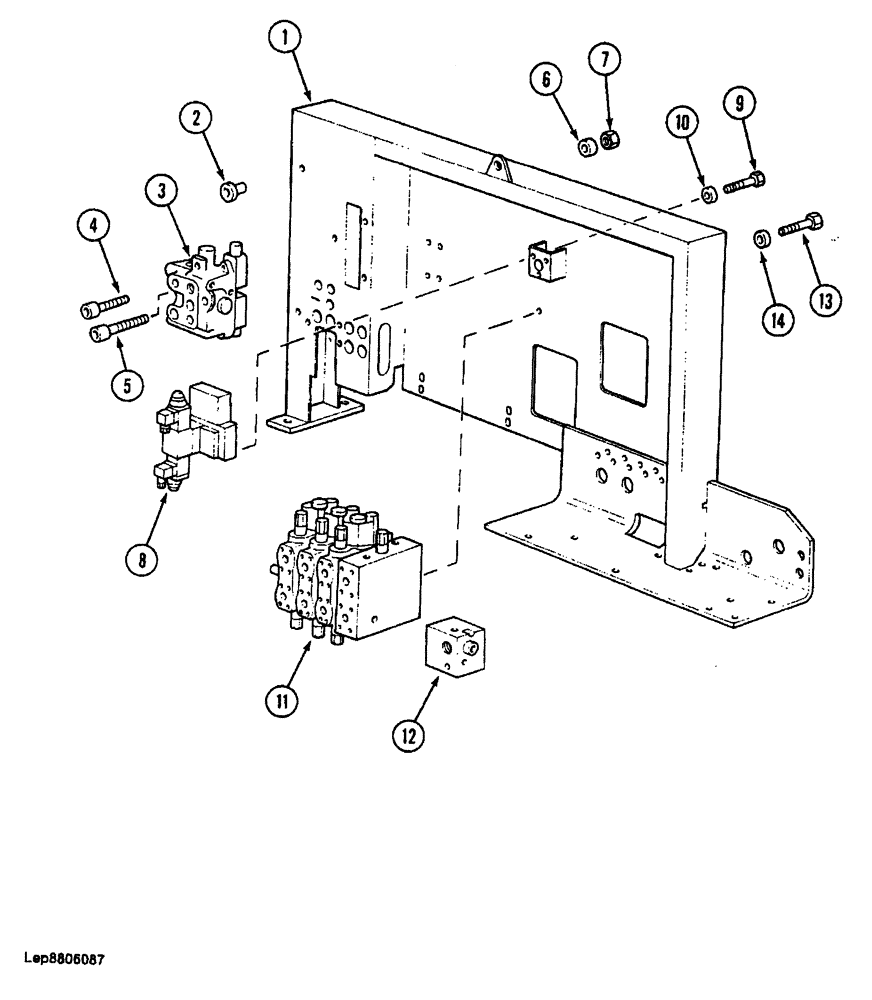

Запчасти Case 688 (9-020) - VALVE MOUNTING PANEL (09) - CHASSIS

1

P7543804

PARTITION

PANEL - valve mounting

1шт.

2

P234587

NUT

RETAINER - bolt, sleeve type

8шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - swing control, see Figures 8-94 & 8-96

1шт.

4

P1232959

SCREW

BOLT - hex socket head, 8 mm x 50 mm, grade 10.9

2шт.

5

P1232960

SCREW

BOLT - hex socket head, 8 mm x 75 mm, grade 10.9

1шт.

6

P3528794

WASHER

SPACER - bolt, 6 mm thick

3шт.

7

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

3шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid and swing brake release, see Figure 8-90

1шт.

9

P732909

SCREW

BOLT - hex, socket head, 8 mm x 25 mm

3шт.

10

P3528794

WASHER

SPACER - bolt, 6 mm thick

3шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - attachment control, see Figure 8-80

1шт.

12

REF

INSTRUCTION

BLOCK ASSEMBLY - attachment control valve, see Figures 8-86 & 8-88

1шт.

13

P33840

SCREW

BOLT - hex head, 12 mm x 30 mm

3шт.

14

P3528793

WASHER

SPACER - bolt, 8 mm thick

3шт.
