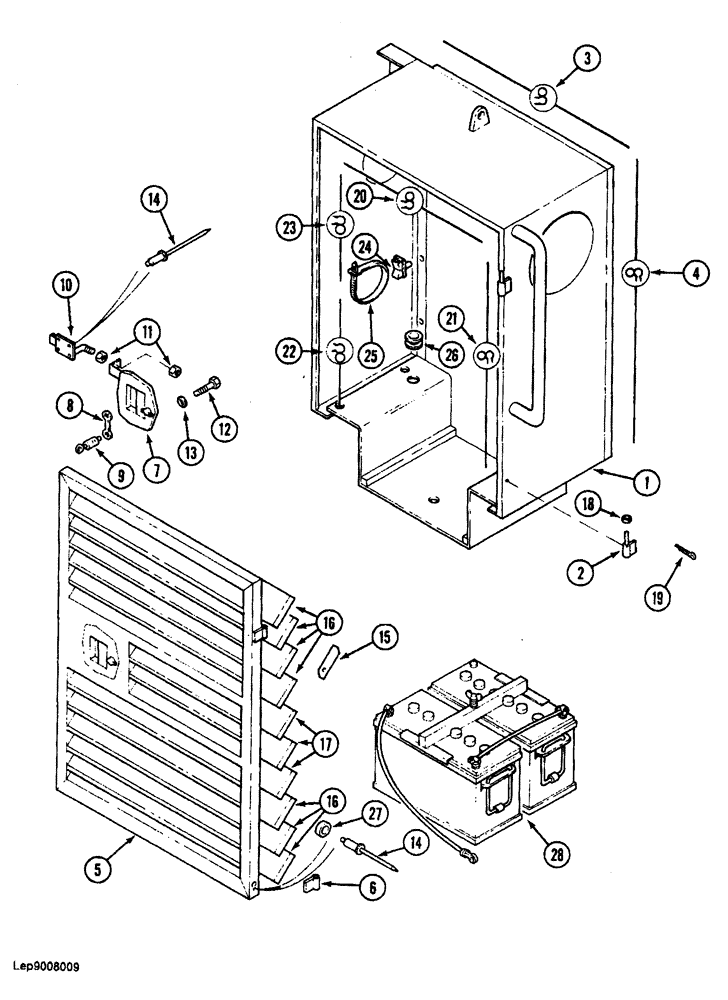

Запчасти Case 688 (9-018) - BATTERY AND AIR CLEANER COMPARTMENT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
P8043815
ELECTRICAL CABINET
COMPARTMENT - battery and air cleaner, Includes: Ref. 2
1шт.
2
P36666
FIXED HINGE
PIN - hinge, door
2шт.
3
REF
INSTRUCTION
SEAL - compartment, top, 28" long, cut from P1303155
1шт.
4
REF
INSTRUCTION
SEAL - compartment, side, 28-3/4" long, cut from P1303155
1шт.
5
P8143817
DOOR
- battery and air cleaner compartment (Replaces P7543878), Includes: Ref. 6
1шт.
6
P36667
FENDER
BRACKET -hinge
2шт.
P852092
LOCK ASSY
LOCK AND LATCH ASSEMBLY - compartment door, Includes: Ref. 7 - 10
1шт.
7
P852096
HANDLE
AND LOCK ASSEMBLY - door, Includes: Ref. 8 - 9
1шт.
8
P2340499
DOOR COVER
COVER - cylinder
1шт.
9
P152083
LOCK, CYLINDER
CYLINDER AND KEY - lock
1шт.
P1352009
KEY
- cylinder
1шт.
10
P1352011
END FITTING
LATCH AND ROD ASSEMBLY - door lock
1шт.
11
15896221
NUT,Hex, M6, 5.20mm High, Cl 10
2шт.
12
P32621
SCREW
BOLT - hex, 6 mm x 16 mm
4шт.
13
P3528799
WASHER
SPACER - bolt, 4 mm thick
4шт.
14
P35413
RIVET
POP RIVET - 8 mm x 16.5 mm
5шт.
15
P2020789
HOOD
RETAINER -, Serial Range: pad-door
37шт.
16
P3841490
FOAM
PAD - grill, long (Replaces P3841437)
7шт.
17
P3841489
FOAM
PAD - grill, short (Replaces P3841436)
3шт.
18
P34607
WASHER
- flat, M6 N
2шт.
19
P35510
SPLIT PIN
COTTER PIN - 2 mm x 20 mm
2шт.
20
REF
INSTRUCTION
SEAL - compartment door, 27-1/2" long, cut from P1303155
1шт.
21
REF
INSTRUCTION
SEAL - compartment door, 29-7/8" long, cut from P1303155
1шт.
22
REF
INSTRUCTION
SEAL - compartment door, 14-1/4" long, cut from P1303155
1шт.
2
REF
INSTRUCTION
SEAL - compartment door, 15-1/2" long, cut from P1303155
1шт.
24
P3036926
BASE
RETAINER - harness strap
3шт.
25
P336923
CLAMP
TIE STRAP - nylon, 4-5/8" long
3шт.
26
P3441470
GROMMET - rubber, electrical harness
1шт.
27
P41467
STOP
PLUG - door, rubber
1шт.
28
REF
INSTRUCTION
BATTERIES, BATTERY MOUNTING AND CABLE - electrical, see Figure 4-12
1шт.
Выбрано товаров: 30
